4. Add a Slave
1. Enter a fieldbus slave on the surface by clicking on the “Device” menu
point in the "Insert" menu.
The mouse pointer changes to the letter D with an arrow.
2. Move this mouse pointer to the graphic display of the fieldbus, then click
on the left-hand mouse key.
A dialog window opens permitting you to select a DeviceNet device.

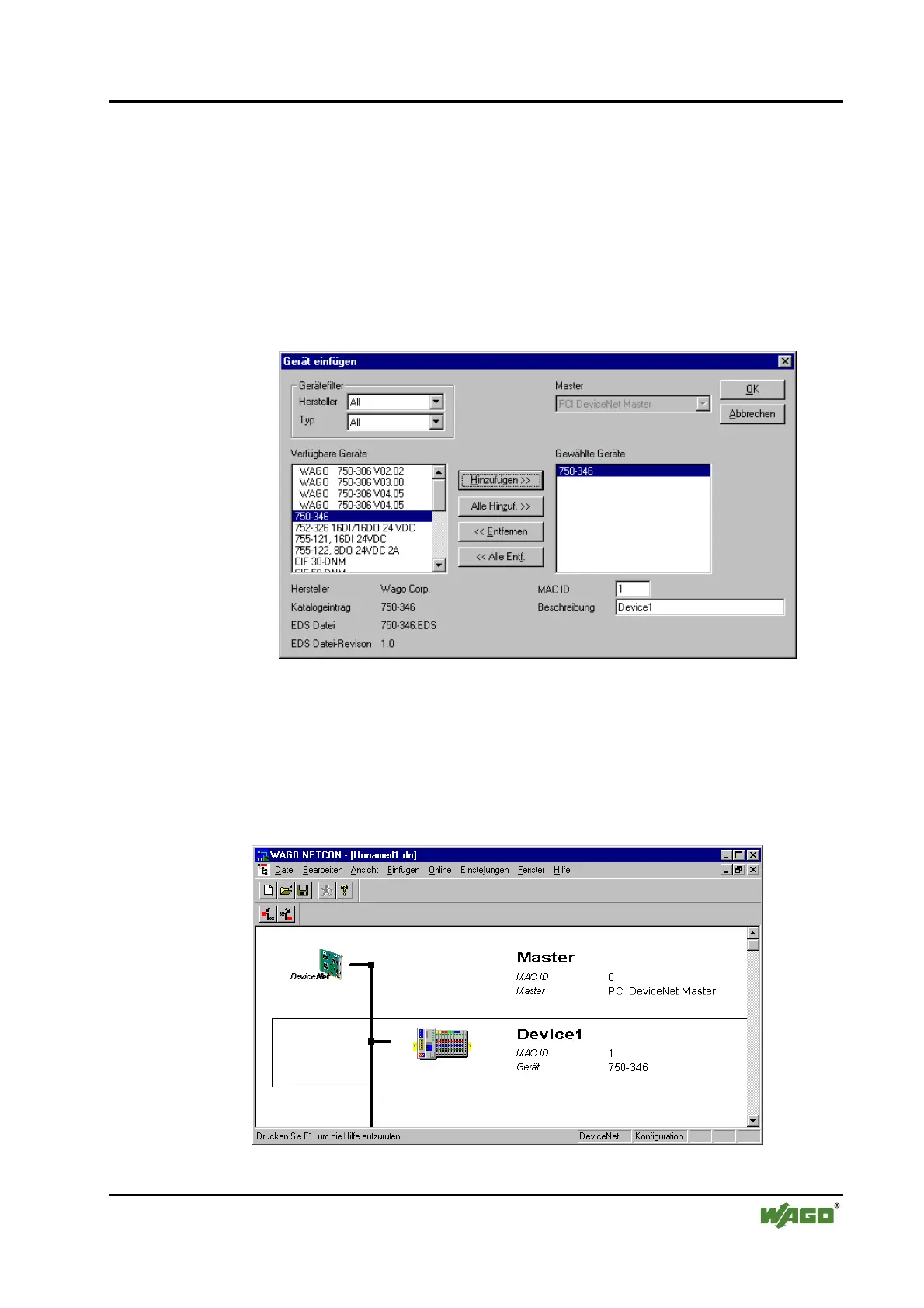

Fig.
3-15: Insert slave
g012503d
3. For the fieldbus coupler 750-346 click in the left-hand selection window on
the corresponding entry to mark it.
4. Take this into the right-hand window by clicking on the "Add" button and
confirm by clicking on the "OK" button.
The configuration is displayed on the surface as a graphic.
Fig. 3-16: Configuration p012504d
