WarmFlow Agentis Series User Manual

Page 16
1.10 Setting CH flow temperature

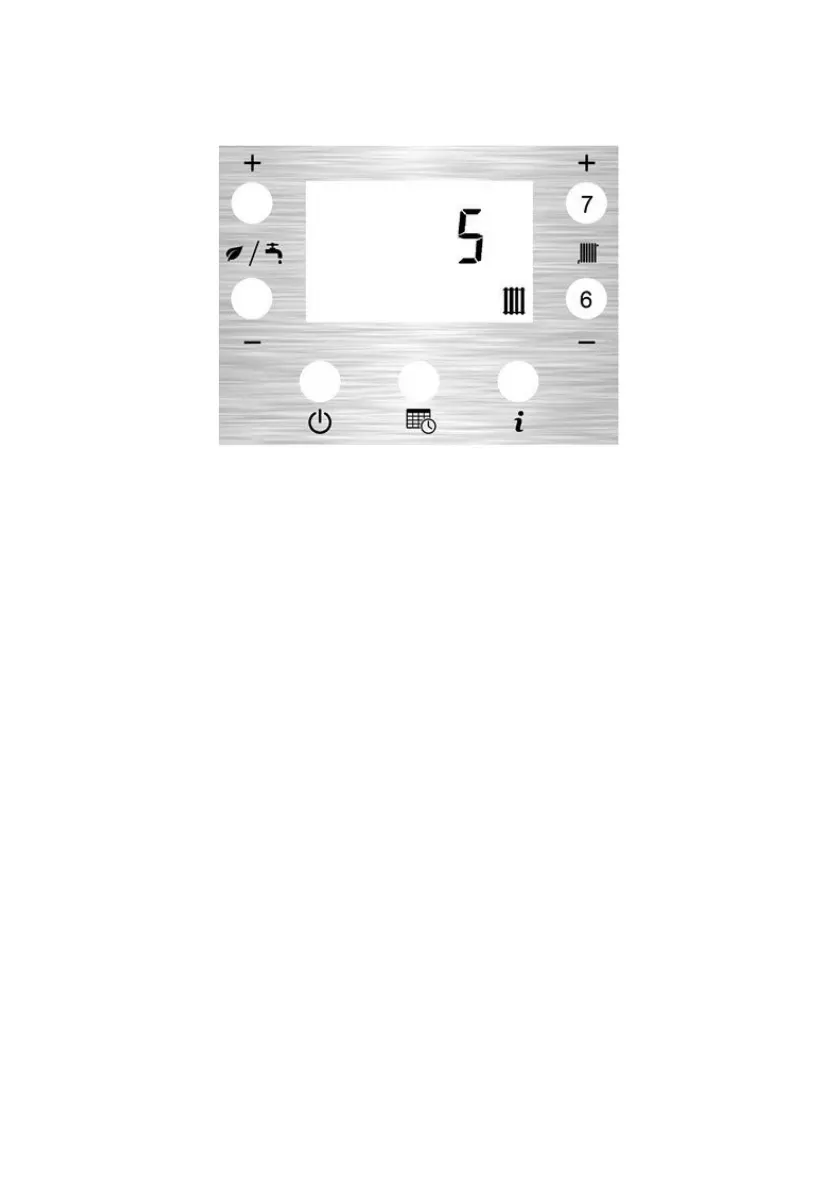

The CH Setpoint Menu is displayed when the CH+ button (7) or CH- button (6) are pressed
when the LCD is displaying the Home Screen.
The setpoint is adjustable from 1 (lowest) to 9 (highest). Nominally the central heating flow
temperature (at the boiler) will be 50°C at the lowest setting and 82°C at the highest setting.
The setting is saved 5 seconds after the last button press.

WarmFlow Agentis Series Specifications

General

Installation Type	Wall-mounted
Type	Condensing
Dimensions	700 x 400 x 300 mm
Efficiency	Up to 93%
Control	Digital
Heating Capacity	Varies by model
Warranty	5 years
