6.6.1 Programming CH Time Slots

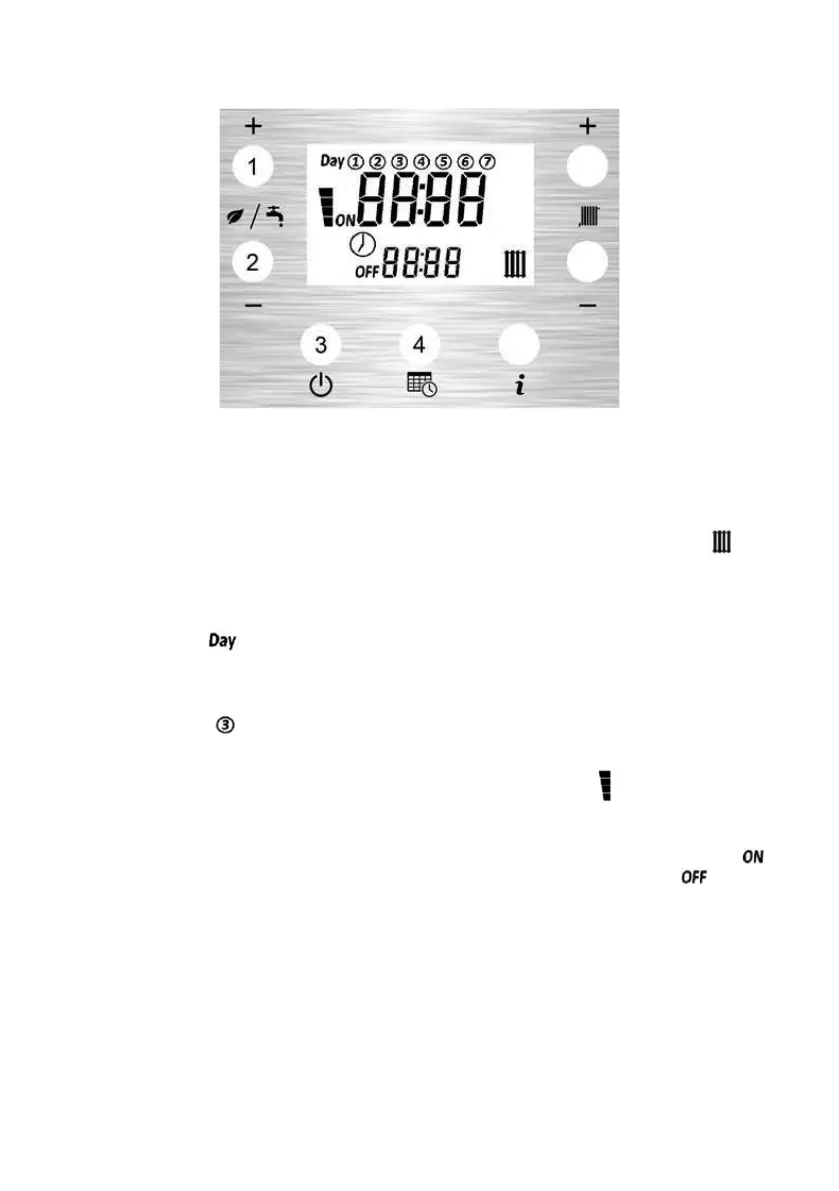

1. From the Home Screen, press the Time Programming button (4) for 3 seconds.
2. The LCD will display ‘tinE’ representing Time. Note: This menu can only be accessed
if the internal time programmer is enabled for CH. See sections 11.7.1 and 11.7.2
for enabling the programmer.
3. Press the DHW+ button (1) to select CH Time Programming, the radiator icon will
flash when selected.
4. Press the Mode button (3) for 1 second to enter the CH Time Programming Menu.
5. The word will flash. Use the DHW+ button (1) or DHW- button (2) to select the
day to be modified.
6. Press the Mode button (3) for 1 second to modify the Time Slots for the selected day, the
day number (1-7) will flash.
7. Press the DHW+ button (1) or DHW- button (2) to select the Time Slot to be modified,
indicated by the Time Slot Identifier on the left side of the LCD . There are 4 time
slots represented by the 4 blocks of the Time Slot Identifier.
8. To modify the displayed Time Slot, Press the Time Programming button (4) for 1
second, the time to be modified will flash. The on time is shown in the main digits
with ‘ON’ to the left of the time. The off time is shown in the axillary digits with
‘OFF’ to the left of the time.
9. Change the time as required using the DHW+ button (1) or DHW- button (2).
10. Confirm the setting and move to the next time to be modified by pressing the Time
Programming button (4).
11. When finished programming the off time, confirm the setting by pressing the Time
Programming button (4) which will return the LCD to step 7 allowing another time slot to
be selected. To select a different day for programming, return to step 5 by pressing the
Mode button (3) for 1 second.
