WarmFlow Agentis Series User Manual

Page 82

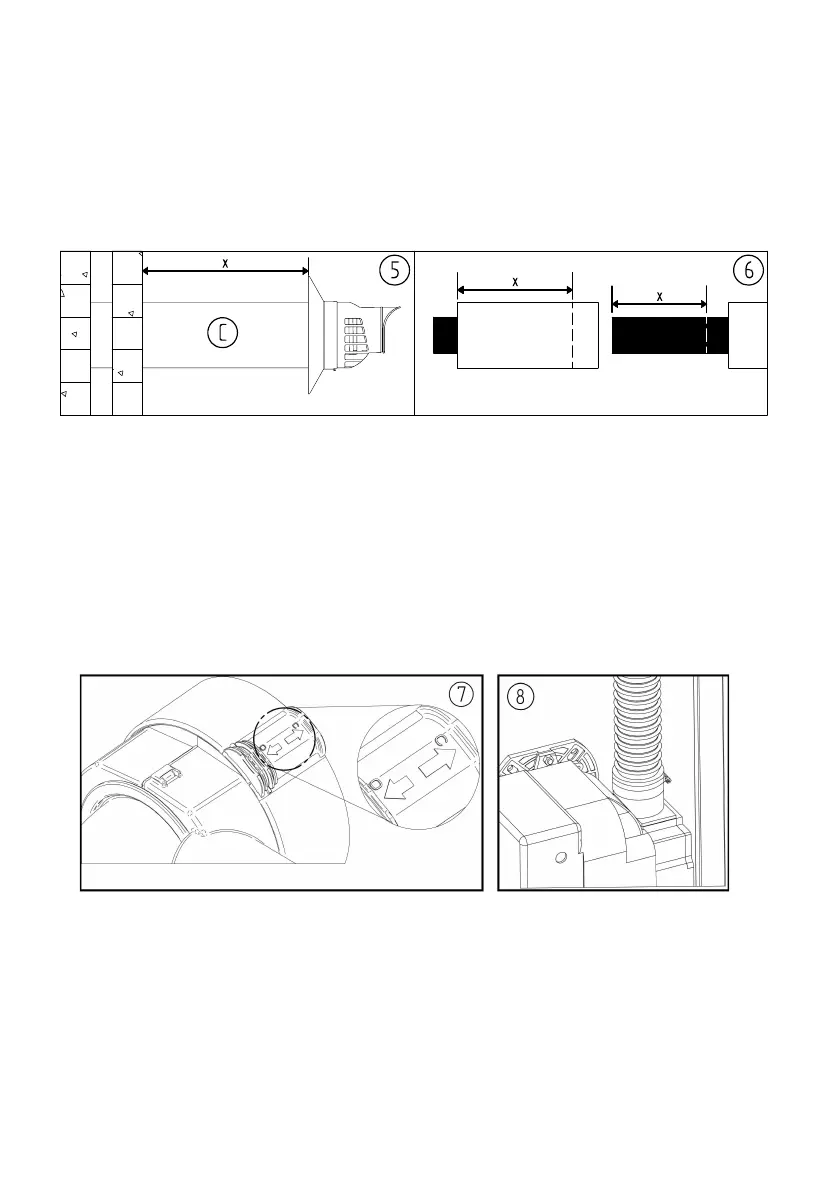

MEASURE AND CUT FLUE TERMINAL
4. Cut a hole through the wall and fit a non-combustible sleeve.
5. Ensure the locking band is open by sliding the clamp to the O (Open) position,
lubricate then fit the flue terminal (C) and measure the excess length, X.
6. Remove the terminal, cut X mm from the outer pipe of the terminal then X mm
from the inner pipe.
CONNECT TERMINAL AND AIR HOSE
7. Lubricate and refit the terminal ensuring correct orientation, then secure with
the locking band. Close the locking band, then slide the clamp to the C (Closed)
position, ensuring the flue is secure.
8. Fit the air inlet spigot and gasket to the burner. Attach the flexible air hose to
the burner and starter assembly and secure with the jubilee clips.
9. Fit the terminal guard (D) securing in place with suitable fasteners (not
supplied).
7
2500 Sheets + Overs WAR139220 Agentis Boiler Manual Sig 7 Front

WarmFlow Agentis Series Specifications

General

Installation Type	Wall-mounted
Type	Condensing
Dimensions	700 x 400 x 300 mm
Efficiency	Up to 93%
Control	Digital
Heating Capacity	Varies by model
Warranty	5 years
