INSTALLATION INSTRUCTIONS
TR05A140.B1107
26
4.8.2 Horizontal coaxial balanced flue – Ø 60/100 (Kit K)

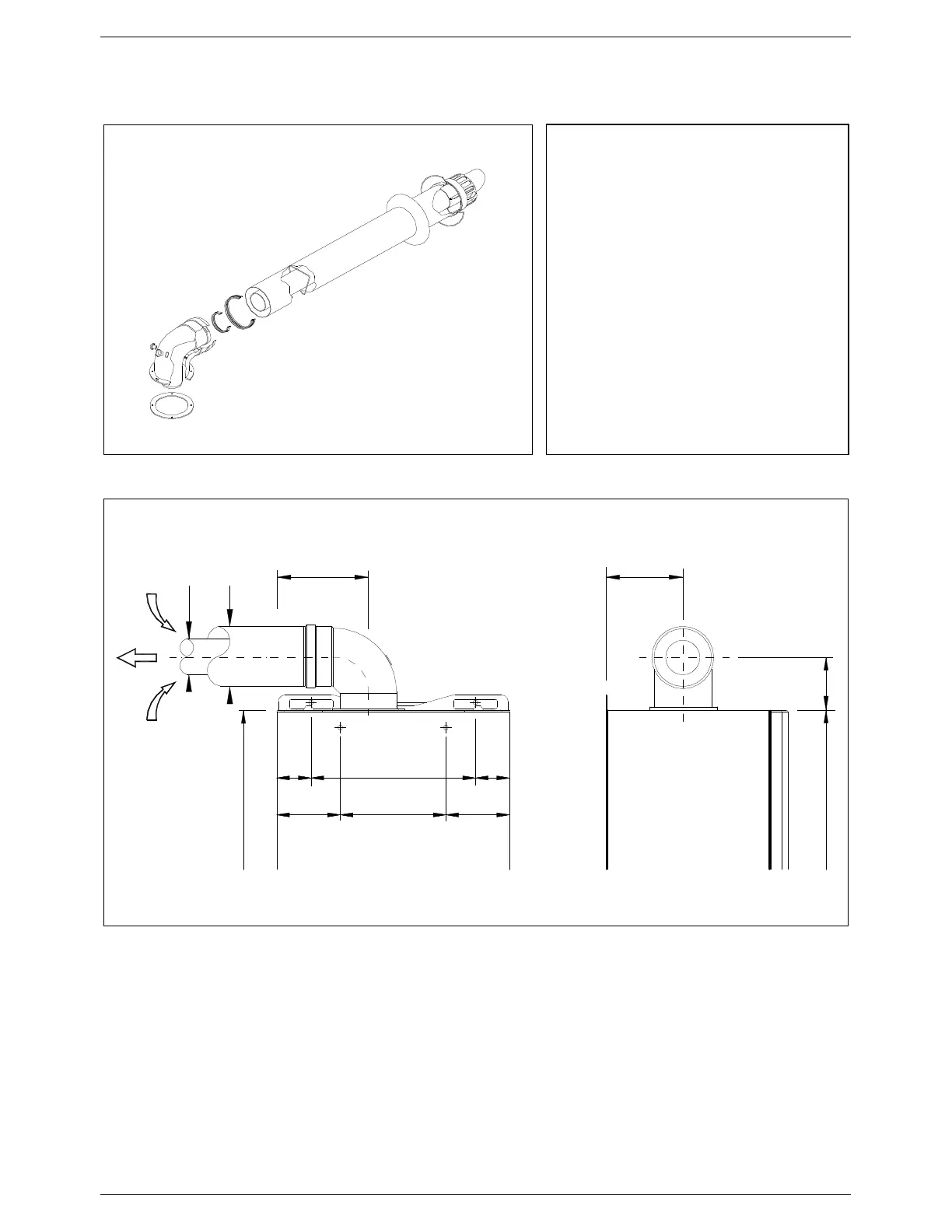

Figure 18: Ø 60/100 Horizontal Kit K
Figure 19: Ø 60/100 Horizontal Kit K dimensions
FOR CONDENSING BOILERS ONLY
Ø 60/100
MAXIMUM FLUE LENGTH = 5 m *
The flue length is the total length of the flue
excluding the first bend.
The total length is calculated by summing
the lengths of all the straight section AND
the equivalent lengths of each bend (see
below).
Ø 80/125 x 90° bend = 0.8 m
Ø 80/125 x 45° bend = 0.5 m
* If a flue length of above 5 metres is
required, use the Ø 80/125 system.
111.5187111.5
48.5 313 48.5
97
132
163
60
100
