INSTALLATION INSTRUCTIONS
TR05A140.B1107
29

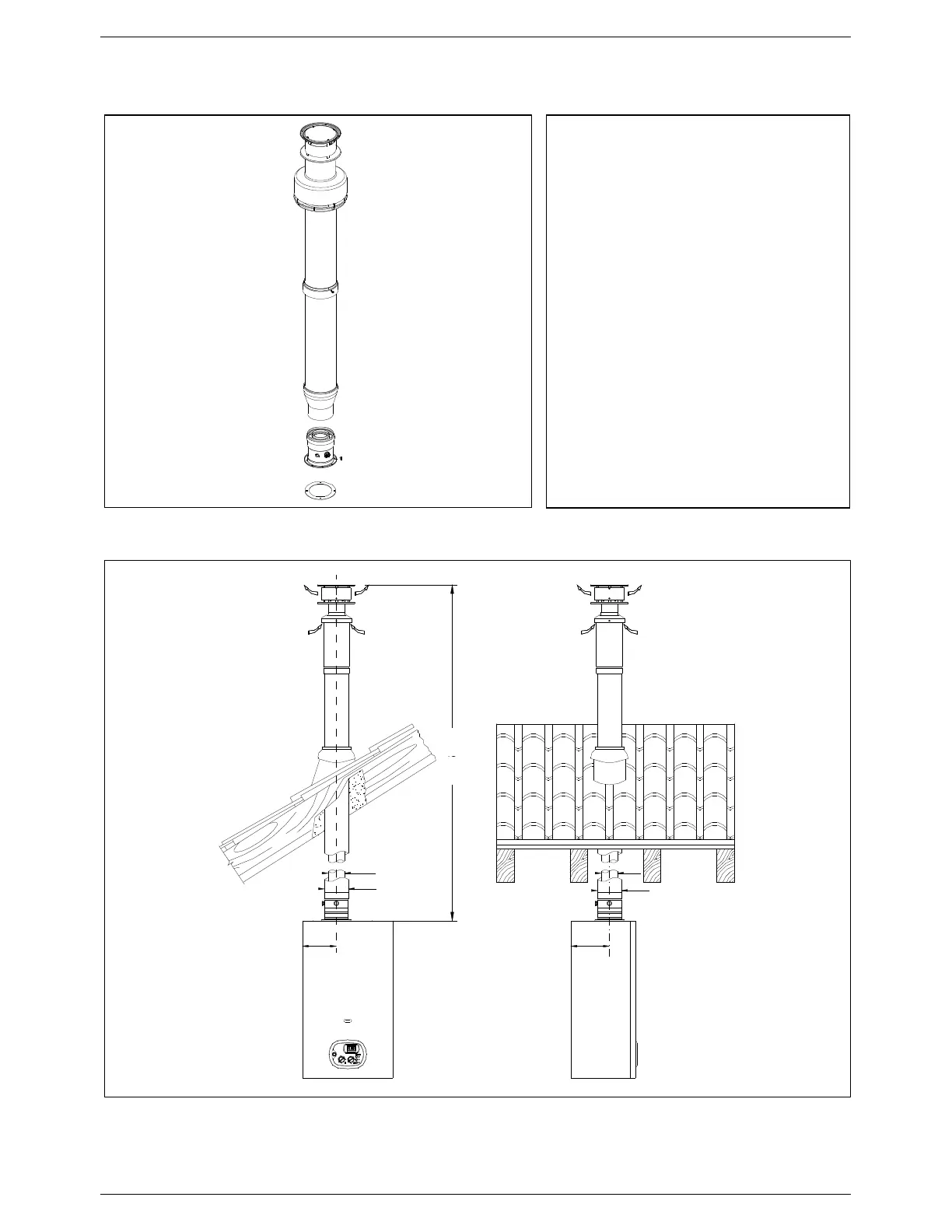

4.8.5 Vertical coaxial balanced flue – Ø 80/125
Figure 24: Ø 80/125 Verical Kit
Figure 25: Ø 80/125 Verical Kit dimensions
FOR CONDENSING BOILERS ONLY
Ø 80/125
MAXIMUM FLUE LENGTH = 7 m *
The flue length is the total length of the flue
excluding the first bend.
The total length is calculated by summing
the lengths of all the straight section AND
the equivalent lengths of each bend (see
below).
Ø 80/125 x 90° bend = 0.8 m
Ø 80/125 x 45° bend = 0.5 m
* If a flue length of above 7 metres is
required, use the Twin Pipe system.
Ø100
Ø60
163
131
Ø60
Ø100
max. 5.00 mt.
7
