INSTALLATION INSTRUCTIONS
TR05A140.B1107
28

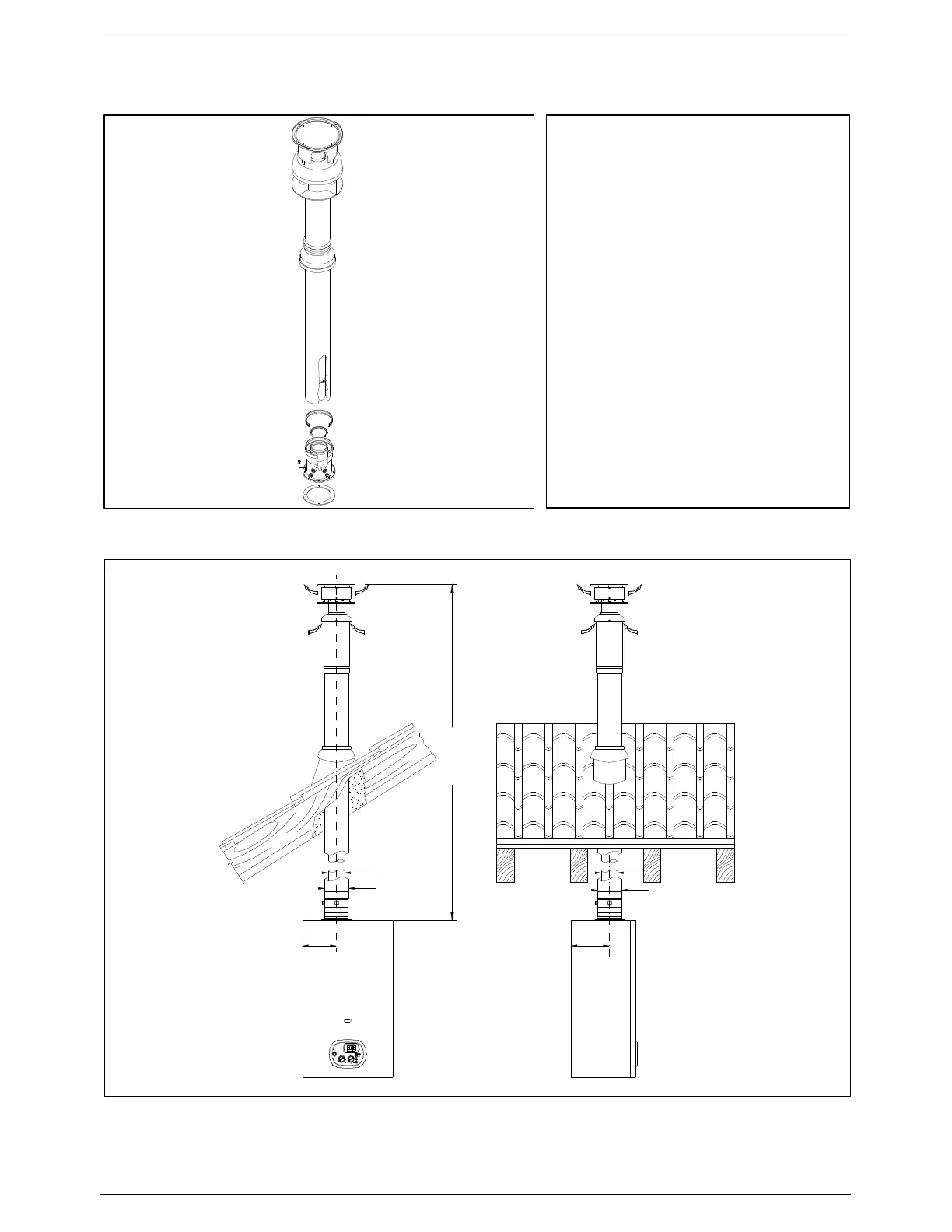

4.8.4 Vertical coaxial balanced flue – Ø 60/100 (Kit V)
Figure 22: Ø 60/100 Vertical Kit V
Figure 23: Ø 60/100 Vertical Kit V dimensions
FOR CONDENSING BOILERS ONLY
Ø 60/100
MAXIMUM FLUE LENGTH = 5 m *
The flue length is the total length of the flue
excluding the first bend.
The total length is calculated by summing
the lengths of all the straight section AND
the equivalent lengths of each bend (see
below).
Ø 80/125 x 90° bend = 0.8 m
Ø 80/125 x 45° bend = 0.5 m
* If a flue length of above 5 metres is
required, use the Ø 80/125 system.
Ø100
Ø60
163
131
Ø60
Ø100
max. 5.00 mt.
