Making Fluidic Connections 41
2

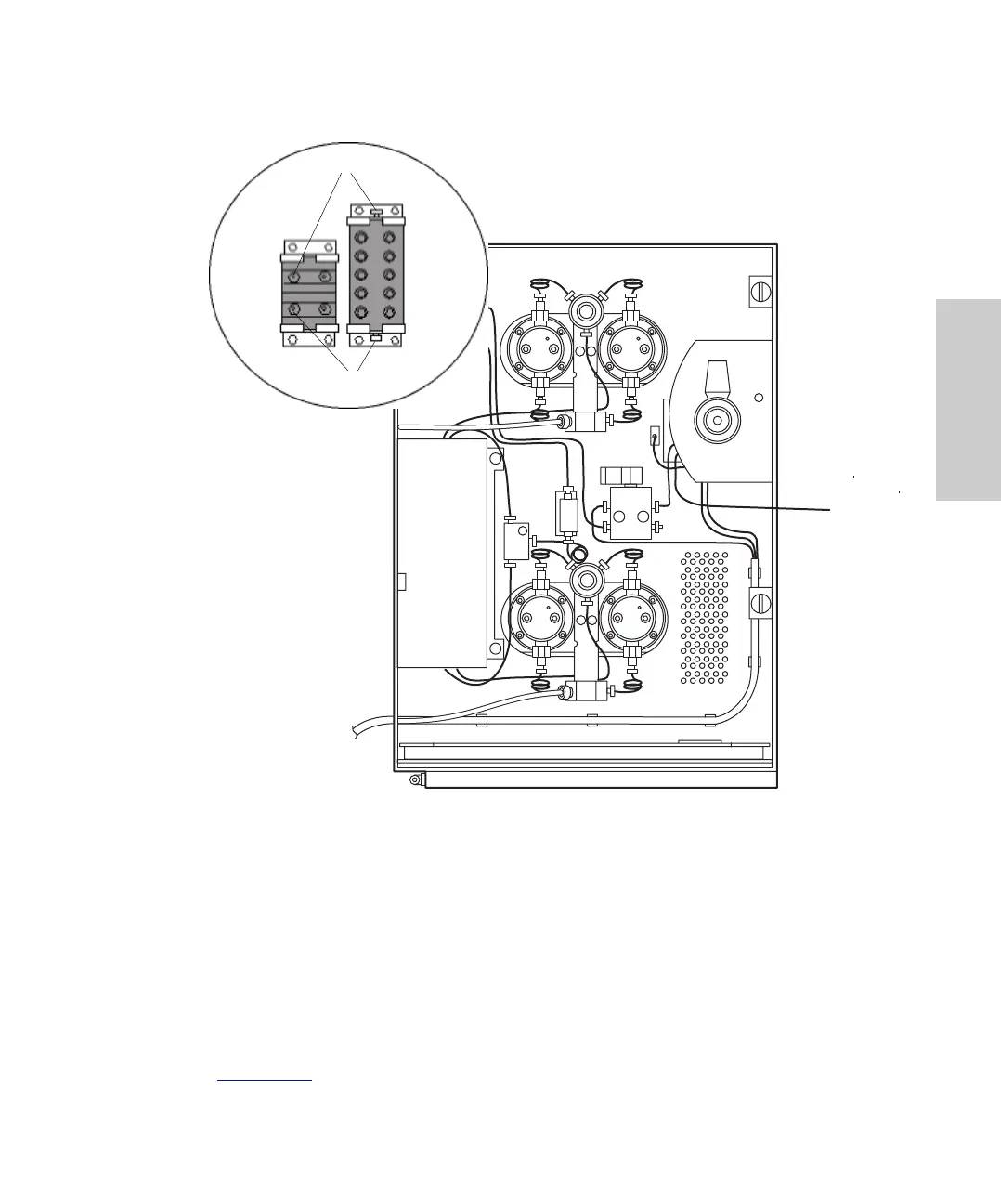

Figure 2-4 1525EF Pump Mixer Configurations
Installing Mixers
There are four pairs of mounting holes on the upper-left side of the chassis face. For the
following configurations, these hole pairs are numbered from 1 to 4 top to bottom.
Dual GM150 Gradient Mixers
To use this configuration with the 1525EF Pump:
1. Have available two GM150 Gradient Mixers (part number WAT055847). Refer to
Appendix B
.
Out
In
1
2
Gradient Mixers
