Waters ACQUITY UPLC I-Class IVD - Binary Solvent Manager I;O Signal Connectors

Signal connections
July 7, 2014, 715003736IVD Rev. C 75
Binary solvent manager I/O signal connectors
The rear panel of the binary solvent manager includes two removable
connectors that hold the screw terminals for I/O signal cables. These
connectors are keyed so that they can be inserted only one way.

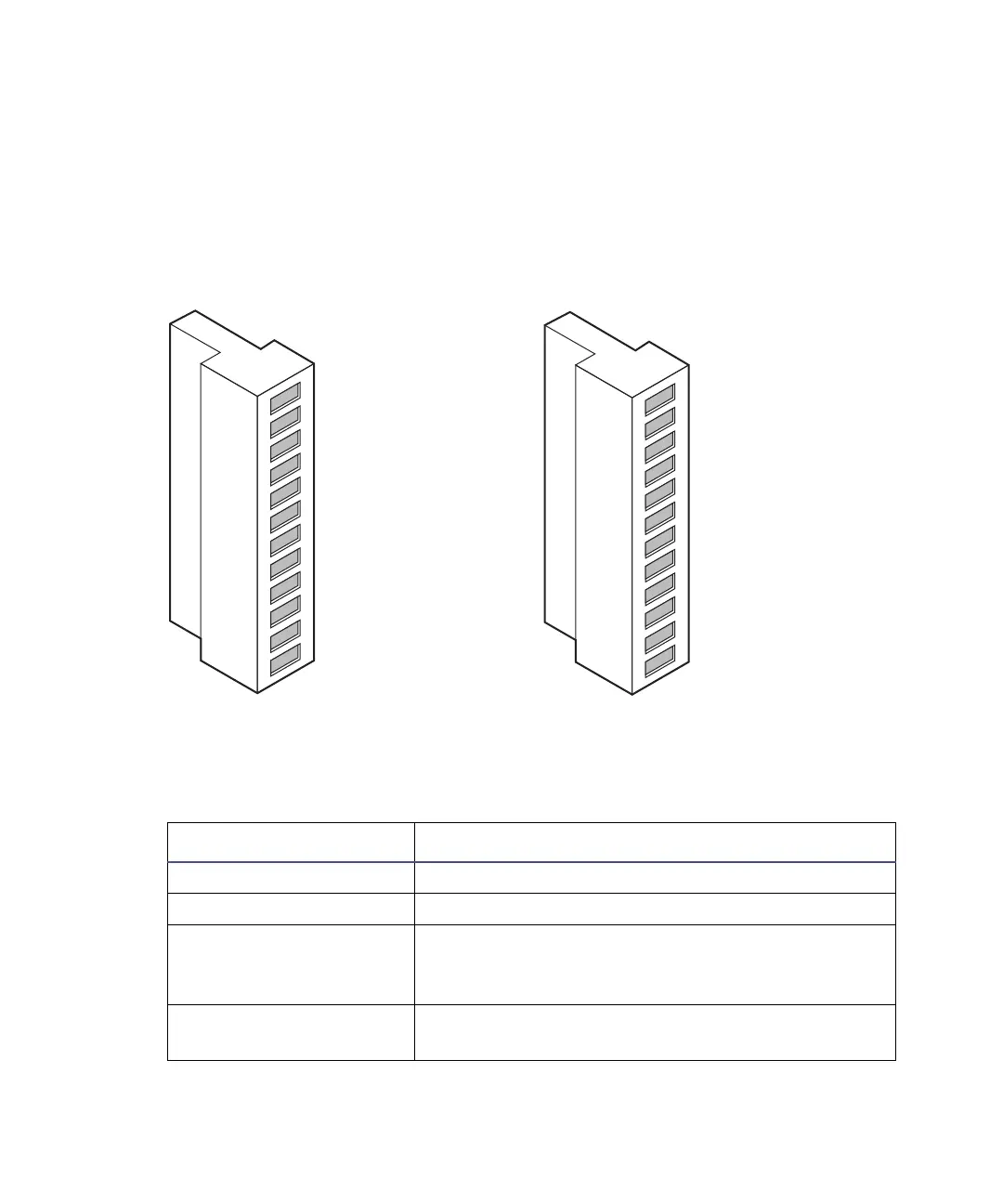

Binary solvent manager I/O signal connectors:
For electrical specifications, see Appendix C, “System Specifications”.
Binary solvent manager analog-out/event-in connections:
Signal connection Description
Auxiliary 1 In Reserved for future use.
Auxiliary 2 In Reserved for future use.
Run Stopped Out Indicates (with a contact closure) the binary
solvent manager has ceased operation because of
an error condition or operator request.
Switch 1 Out Used to send time-based contact closure signals
to external devices.
1
2
3
4
5
6
7
8
9
10
11
12
+
−
+
−
+
−
Auxiliary 1 In
Auxiliary 1 In
Auxiliary 2 In
Auxiliary 2 In
Ground
Run Stopped Out
Run Stopped Out
Switch 1 Out
Switch 1 Out
Ground
0-2V Analog 1 Out
0-2V Analog 1 Out
Connector I
1
2
3
4
5
6
7
8
9
10
11
12
+
−
+
−
+
−
Start Gradient In
Start Gradient In
Stop Flow
Stop Flow
Ground
Switch 2 Out
Switch 2 Out
Switch 3 Out
Switch 3 Out
Ground
0-2V Analog 2 Out
0-2V Analog 2 Out
Connector II
