Note: See the high-pH fluidic path (in blue) in the following figure. Before flushing, insert the iKey
Infusion device.

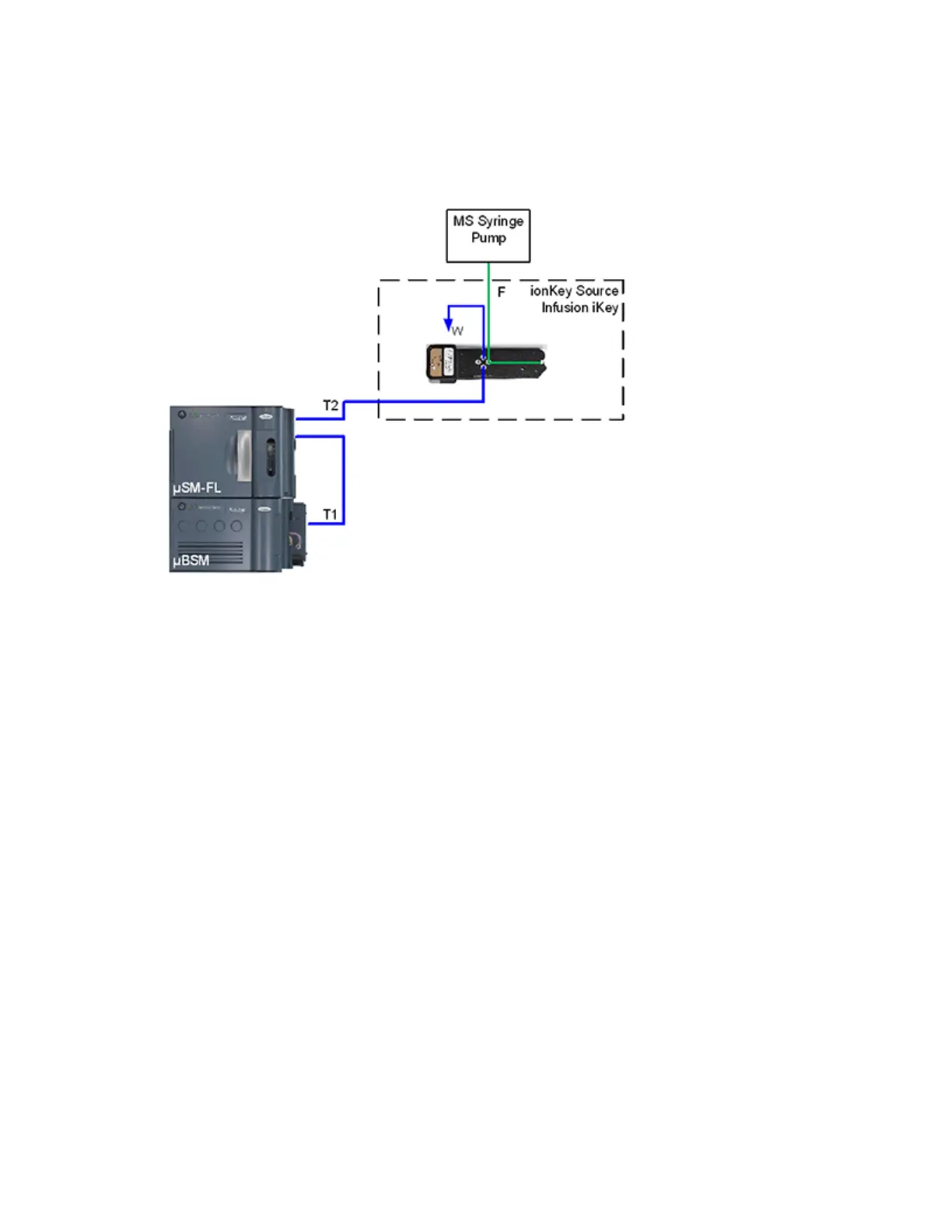

Figure D–3: ionKey/MS direct injection system configuration
November 26, 2019, 715003588 Revision C
Page 109
