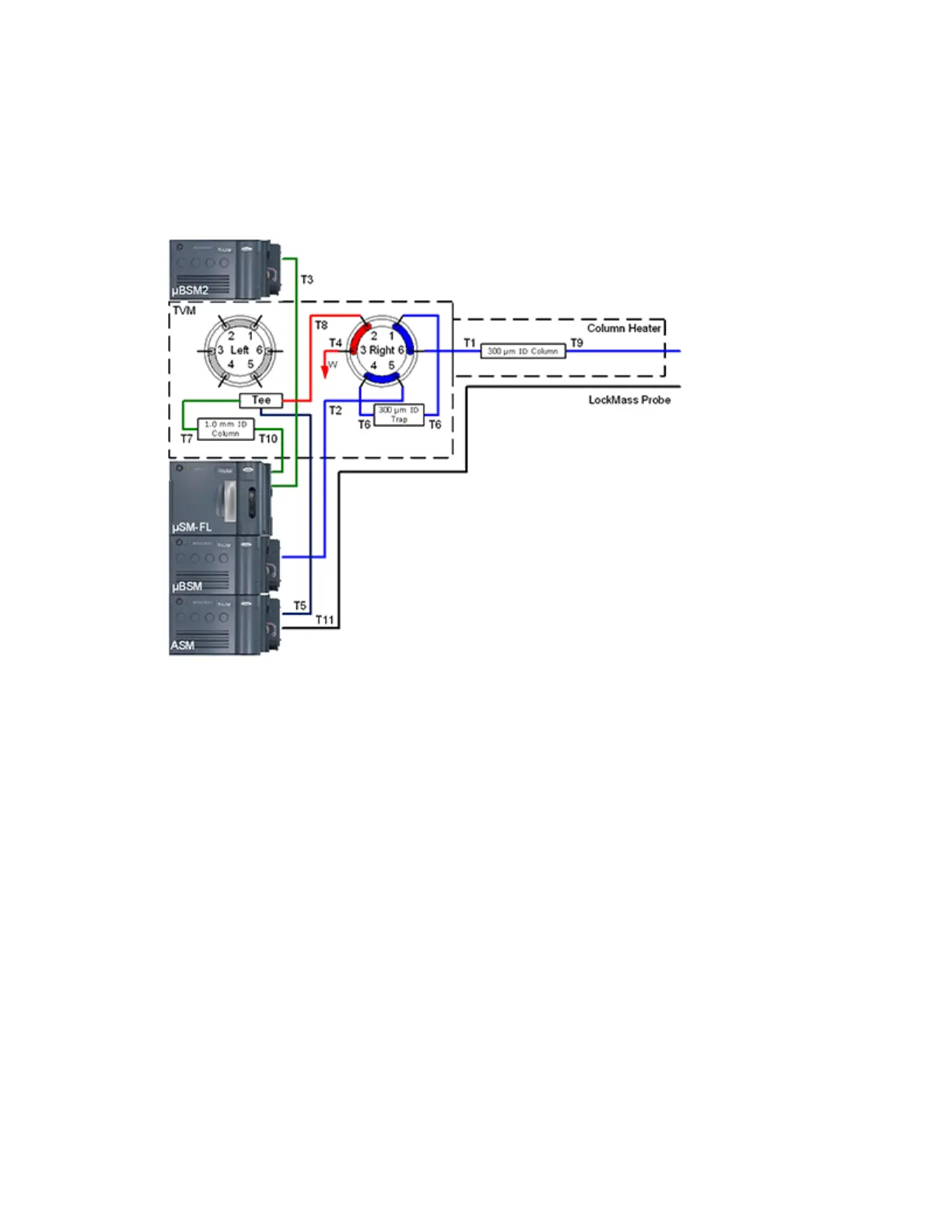

Figure D–4: Host cell protein analysis (HCP) system configuration
Note: See the high-pH fluidic path (in blue) in the following figure and note that dilution occurs at
the tee. Before flushing, substitute a union for the 1.0-mm column and set the TVM right valve to
position 1.
November 26, 2019, 715003588 Revision C
Page 110
