Waters ACQUITY UPLC - Four and Six Column Plumbing Details; Configuration Plumbing Connection Details

72

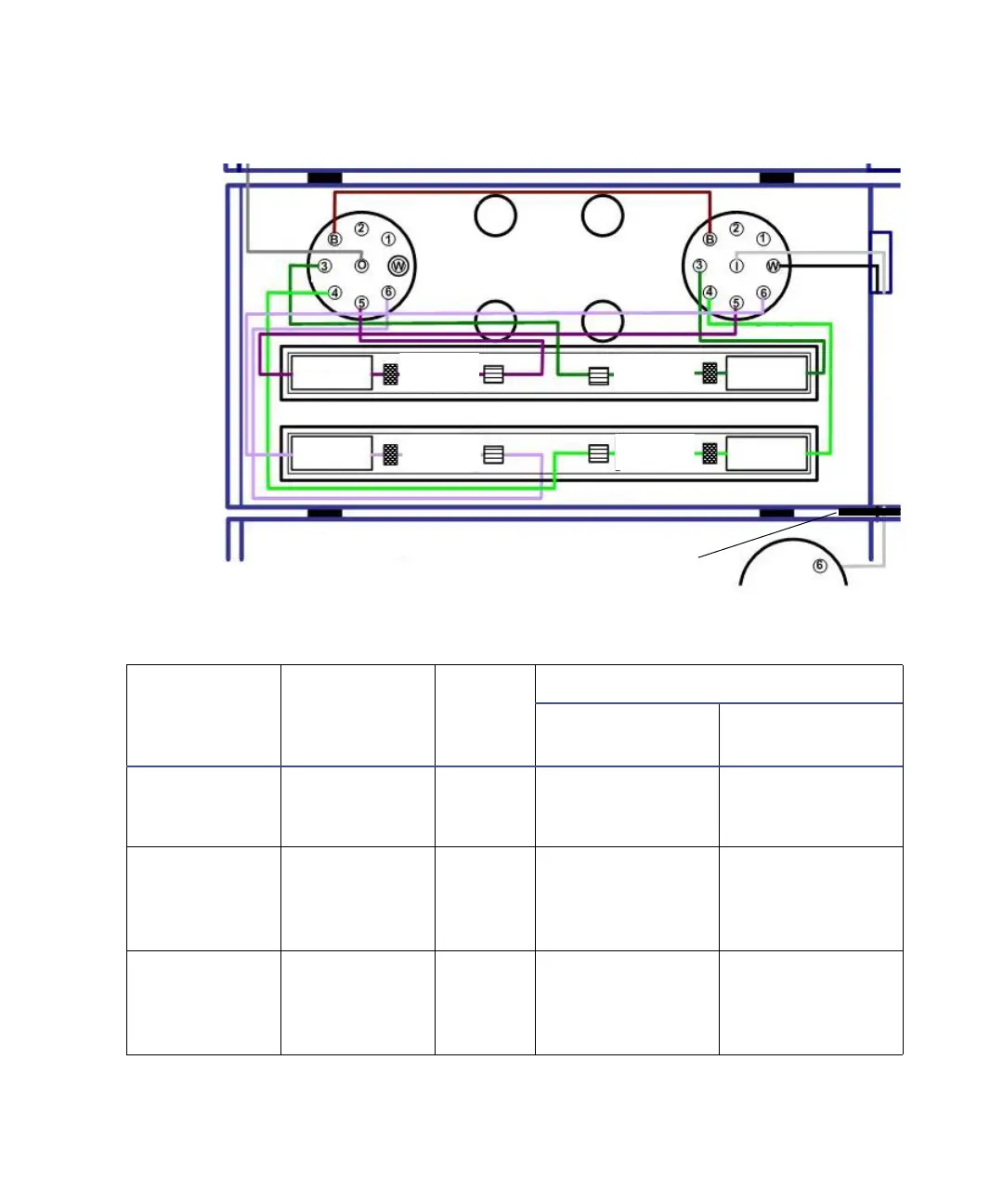

Four-column configuration in a single CM-Aux (50-mm columns), with
inlet switching-valve on the right-hand side:
Four and six column configuration plumbing connection details:
From To
Length
(inches)
Part number
Stainless steel
MP35N
(H-Class Bio)
CM-A inlet
valve, port B
CM-A outlet
valve, port B
N/A 430002725
(bypass tubing,
.005-inch ID)
430002779
CM-A inlet
valve, port W
a
Solvent
manager front
drip tray
waste port
N/A 430002727
(waste tubing,
.010-inch ID)
430002727
CM-A inlet
valve, port 1
Column 1
inlet
12.5 279002002, APH
(reorder part
number
205000730)
279002003
(reorder part
number
205000756)
APH
APH
Inlet
switching
valve
Outlet
switching
valve
APH
APH
Drip tray with
leak detector
Sample manager
Column manager
Column
position 1
Column
position 3
Column
position 2
Column
position 4
Injector
valve
