You can access these additional functions by right-clicking anywhere in the solvent manager
control panel.
Table 3–6: Additional functions in solvent manager the control panel
Control panel function Description
Start up system Brings the system to operational conditions after an extended idle
period or when switching to different solvents.
See also: Console online Help
Prime solvents Displays the Prime Solvents dialog box.
Prime seal wash Starts or stops priming the seal wash.
Wash plungers Initiates the plunger wash sequence.
Launch console Launches the console software.
Reset QSM Resets the QSM following an error condition.
Help Displays the console online Help.
3.5.4 ELS control panel
The evaporative light scattering (ELS) detector’s control panel displays light scattering units,
photomultiplier tube gain factor, gas pressure, nebulizer temperature, and drift tube temperature.
If Empower software controls the system, the detector’s control panel appears at the bottom of
the Run Samples window. If MassLynx software controls the system, the detector’s control panel
appears at the bottom of the Inlet Editor window.
You can edit detector parameters when the system is idle by clicking the underlined value. You
cannot edit these values while the system is running samples.

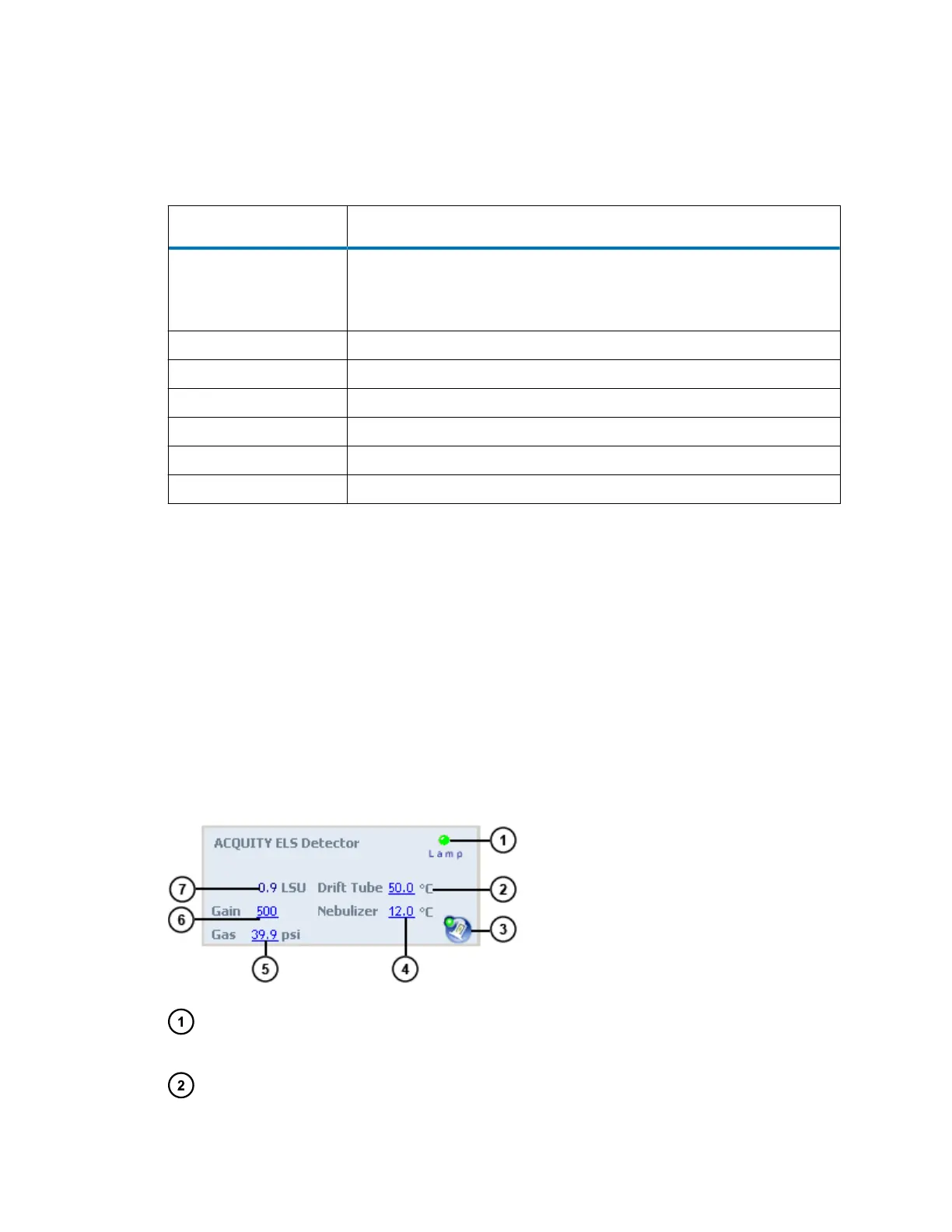

Figure 3–4: ELS detector control panel
Lamp LED – Mirrors the lamp status LED on the front panel of the detector, unless
communications with the detector are lost.
Current drift tube temperature – Displays the current drift tube temperature.
