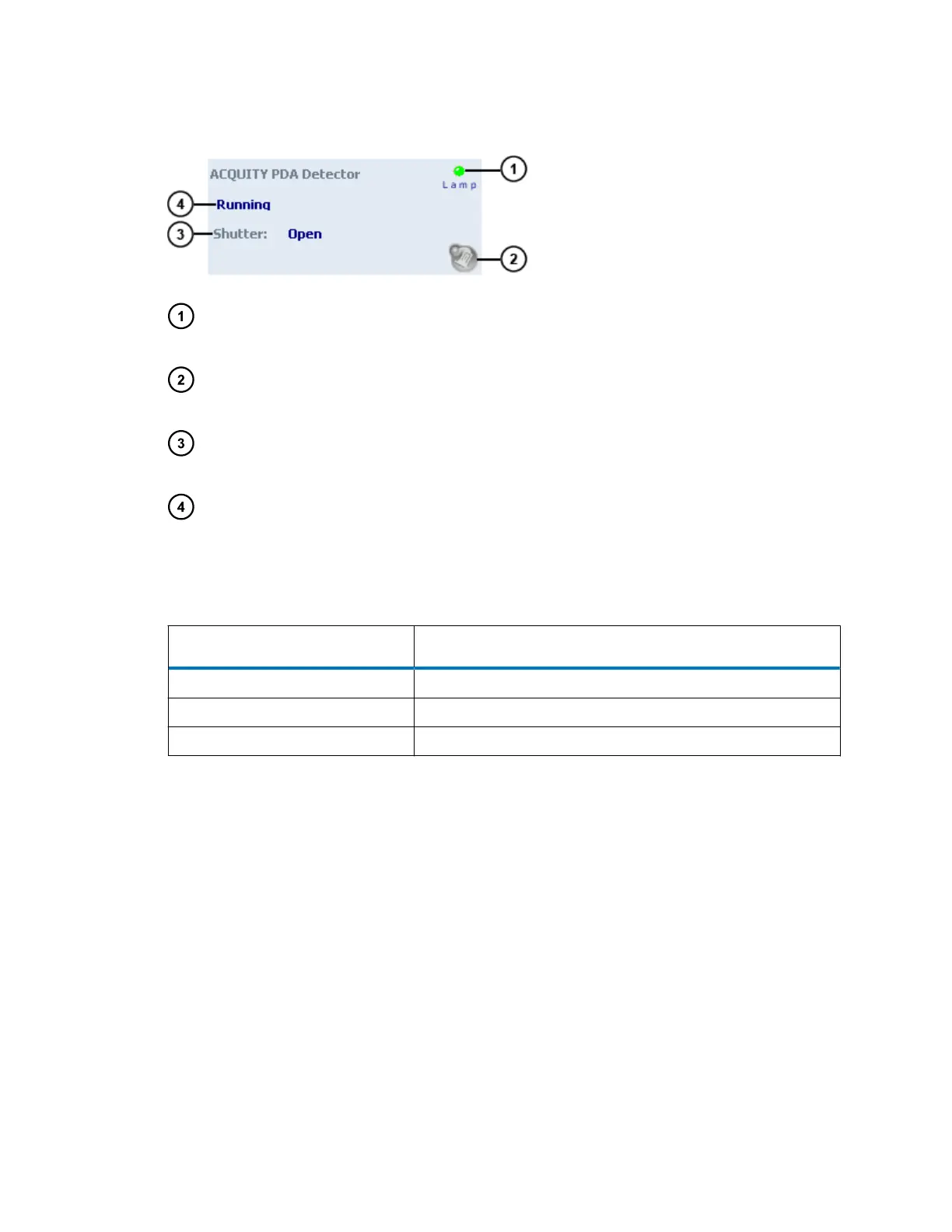

Figure 3–6: PDA detector control panel
Lamp LED – Mirrors the lamp status LED on the front panel of the detector, unless
communications with the detector are interrupted.
Lamp icon – When clicked, ignites or extinguishes the lamp. If the icon is green, the lamp is
ignited. If the icon is red, the lamp is extinguished.
Shutter position – Displays the current position of the detector shutter: open, closed,
erbium, or UV-blocking.
Status – Displays the status of the current operation.
You can access these additional functions by right-clicking anywhere in the detector control
panel.
Table 3–9: Additional functions in the PDA detector control panel
Control panel function Description
Autozero Resets the detector offsets.
Reset module Resets the detector after an error condition.
Help Displays console online Help.
3.5.7 RI control panel
The refractive Index detector's control panel displays signal measurement, peak polarity, and the
temperatures of the flow cell and external column manager.
