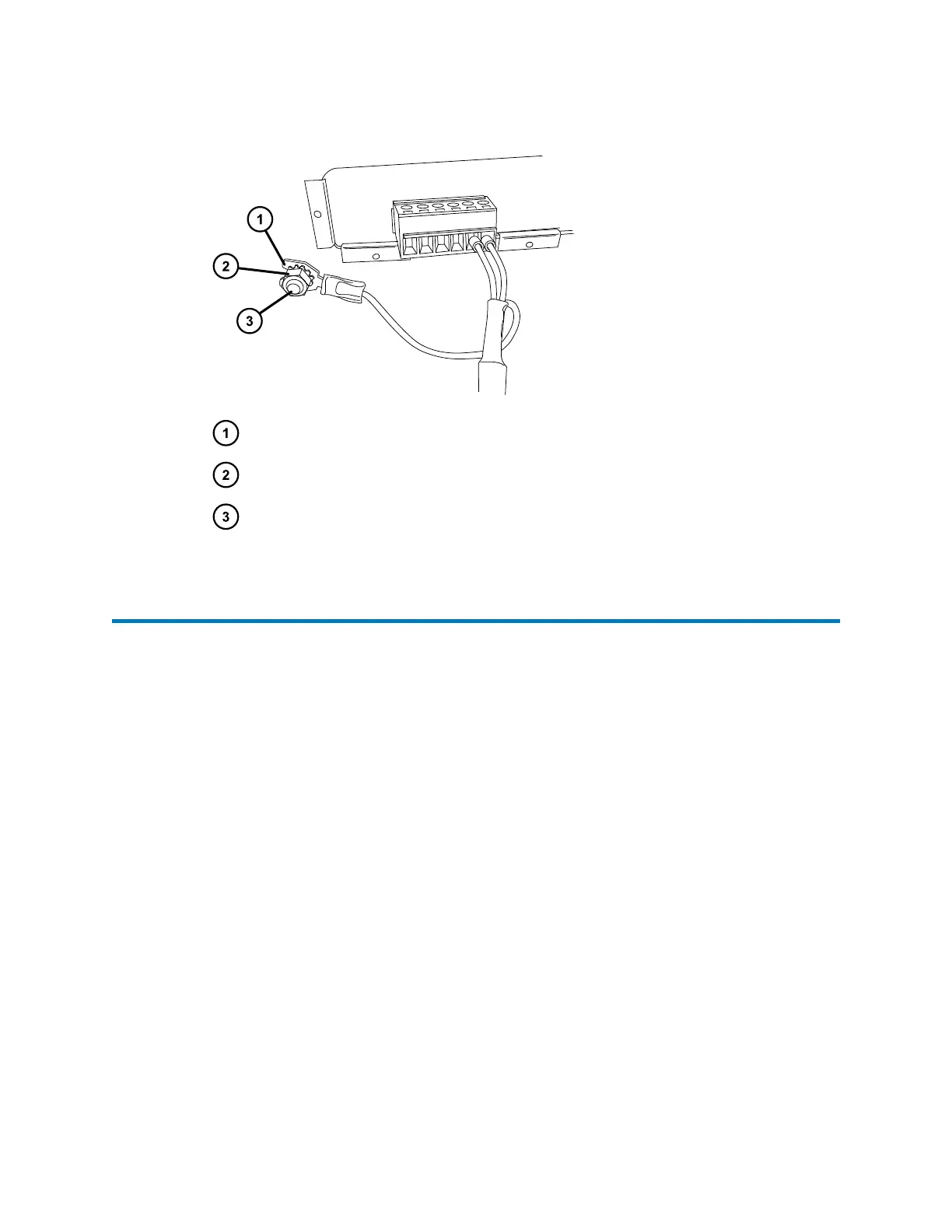

Figure 5–6: Grounding cable fork terminal on grounding stud
Fork terminal
Locking nut
Grounding stud
5.7 Connecting to a column module
The following column modules are compatible with the ACQUITY UPLC H-Class system:
• Column heater
• Column heater 30 cm
• Column heater/cooler
• Column manager
• Column manager auxiliary
The sample manager powers and communicates with the column module. The external
communication cable must be connected to the rear of the column module and the sample
manager.
