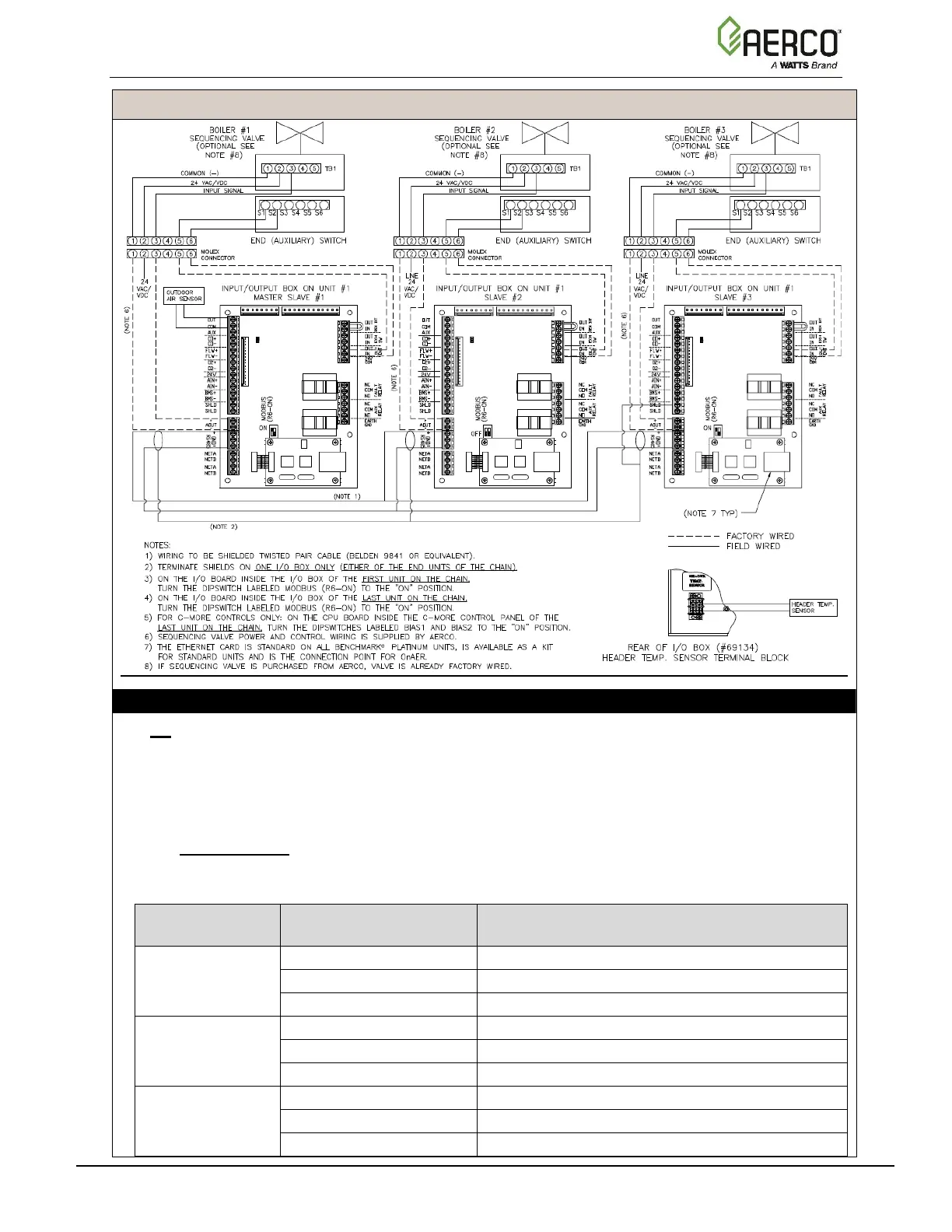

OPTION 1 Instructions: Constant Setpoint with Direct Wired Header Temp Sensor
OPTION 1 Step 3: CONFIGURATION
On All Boilers:
1. Go to: Main Menu → Advanced Setup → BST Cascade → Cascade Configuration and set
the Unit Mode parameter to BST Client.
2. Go to: Main Menu → Advanced Setup → BST Cascade → Cascade Communication and
set the Unit Address parameter to the communication address of the unit.
On the BST Manager only:
1. Go to Main Menu → Advanced Setup → BST Cascade, set the Parameters to the Values
in each menu listed in the table below.
Menu/Screen
Name
Parameters
Values
Cascade
Configuration
Auto Manager Transfer
Disabled (Available on the Manger unit only)
Unit Mode
BST Manager
Hdr Temp Sensor
FFWD Temp
Application
Configuration
Application
Space Heating
SH Operating Mode
Constant Setpoint
SH Setpoint
Header temperature required for the cascade
Cascade Comm
Min address
The minimum unit address in the cascade
Max address
The maximum unit address in the cascade
Cascade Baud Rate
The baud rate for the cascade.
