SECTION 2. EDGE [I] CONTROLLER OPERATION
2.1 INTRODUCTION
This section provides a brief outline of how to gain access to Benchmark Boiler’s Edge [i]
Controller functionality. Full instructions for using the Edge [i] Controller to setup, configure and
operate a Benchmark Boiler are included in the Edge [i] Controller Manual, OMM-0141, GF-213-
B
The Edge [i] Controller is shown below. This panel contains all of the controls, indicators and
displays necessary to operate, adjust and troubleshoot the boiler.
The Edge [i] Controller’s front panel consists of a touchscreen display along with a variety of
indicators and buttons.

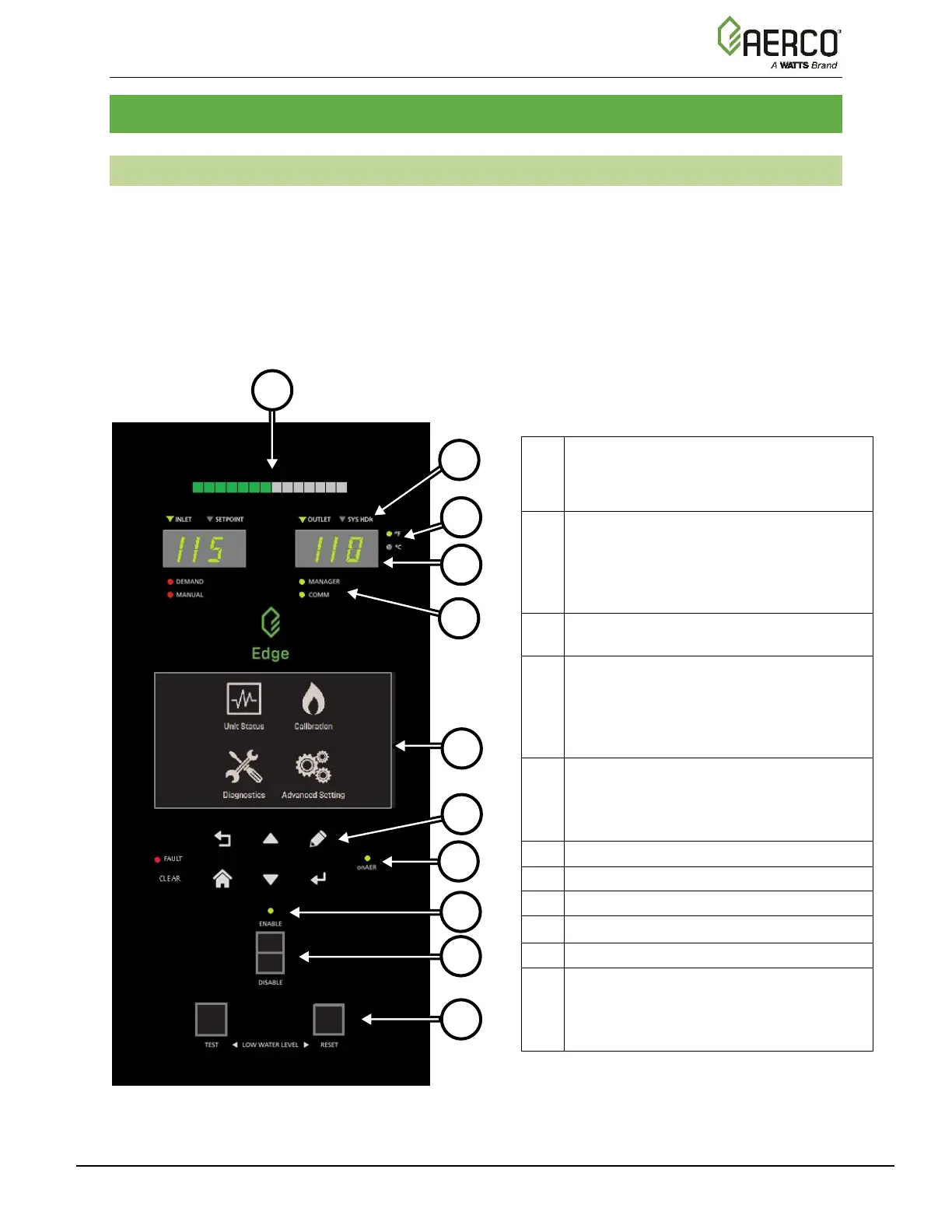

Figure 2-1 Edge [i] Controller Front Panel
1
Multi-Function Bar, shows either:
• Fire Rate
• Valve Position
2
Parameter Indicator for both temperature
read-outs:
• LEFT: Inlet or Setpoint temperature
• RIGHT: Outlet or System Header
temperature
3
Temperature scale indicator: Fahrenheit
or Celsius
4
Configurable temperature read-outs (2):
• LEFT: Inlet or Setpoint
temperature
• RIGHT: Outlet or System Header
temperature
5
Operation Mode Indicators (2):
• LEFT: Demand or Manual
• RIGHT: Manager or Client (BST
only)
6
Edge [i] Controller Touchscreen
7
Soft Keys
8
onAER Indicator Light
9
Ready Light
10
Enable/Disable Switch
11
Low Water Level Buttons (2):
• TEST: Initiates Low Water test
• RESET: Resets unit after Low Water
test
1
2
3
6
7
10
11
4
5
9
8
