CFW-11 | 3-33
XC25
1 4
Frame sizes F, G and H inverters - SRB3.00 board

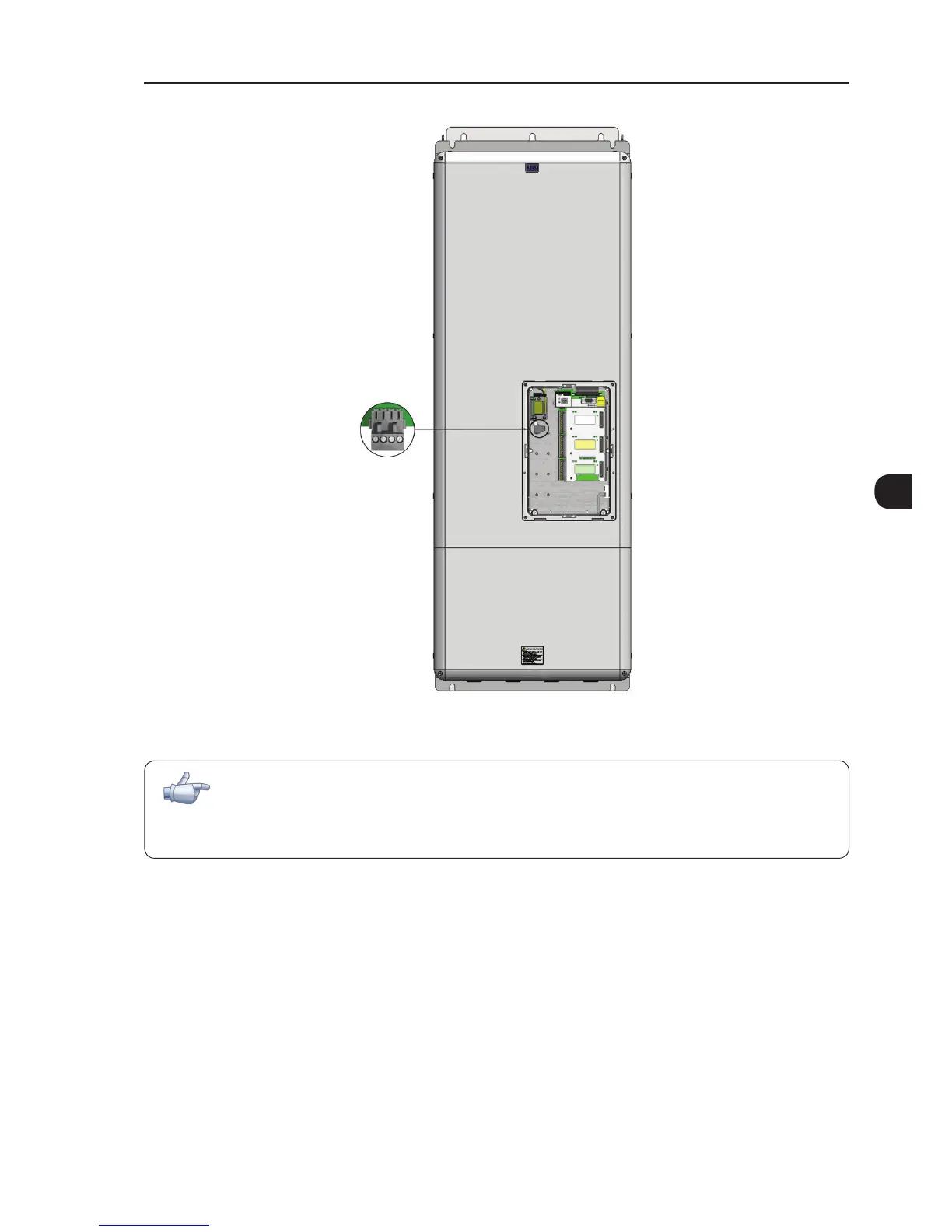

Figure 3.18 - SRBXX board connections (Safety Stop function)
NOTE!
Safety Stop function: the inverters with Safety Stop function option (CFW11...O...Y...) are supplied
with control connections to disable Safety Stop function as per Figure 3.19 on page 3-34. For using
the Safety Stop function see Section 3.3 SAFETY STOP FUNCTION on page 3-38.
