Operating instructions – AC SMART
3 Product description
3.1 AC SMART product family
ECO Socket
CH-W-S-A7.4-S-E
CH-W-S-A11-S-E
CH-W-S-A22-S-E
CH-W-S-A7.4-P-E
CH-W-S-A11-P-E
CH-W-S-A22-P-E
ECO Plug
CH-W-S-A11-S-V
CH-W-S-A22-S-V
CH-W-S-A11-P-V
CH-W-S-A22-P-V
VALUE Socket VALUE Plug
CH-W-S-A11-S-A
CH-W-S-A22-S-A
CH-W-S-A11-P-A
CH-W-S-A22-P-A
ADVANCED Socket ADVANCED Plug

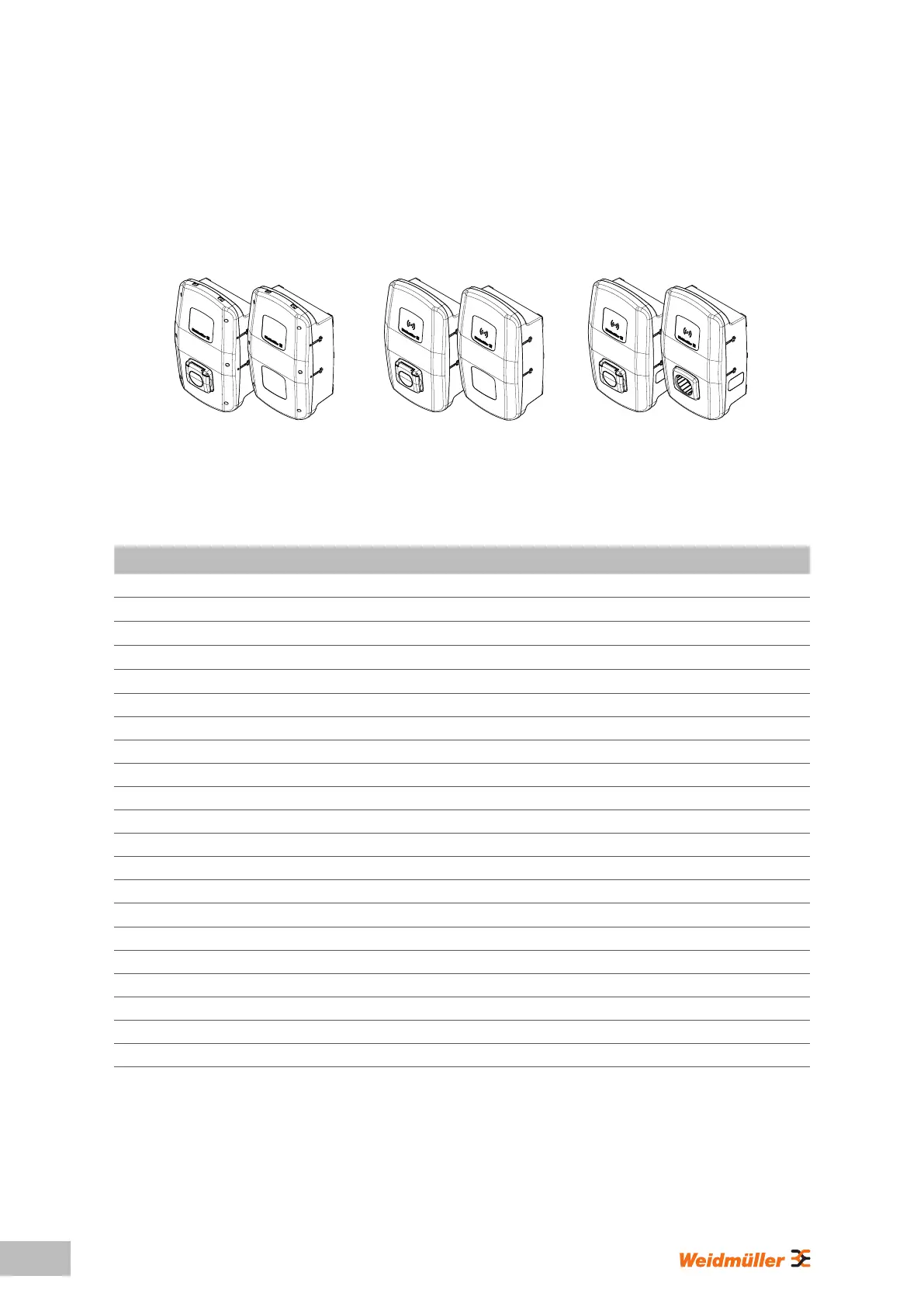

Image 3.1 Product variants
Equipment feature or function Product line
ECO VALUE ADVANCED
Max. charging power 7.4 kW (max. 1-phase, 32 A)

– –
Max. charging power 11 kW (max. 3-phase, 16 A)
  
Max. charging power 22 kW (max. 3-phase, 32 A)
  
PLUG: connected charging cable 5 m incl. type 2 plug
  
SOCKET: charging socket with integrated shutter type 2
  
Fault current detection (DC)
  
Max. charging current adjustable
  
Digitalinputscongurable
  
Serial communication (RS485/Modbus-RTU)
  
Ethernet communication (Modbus-TCP)
  
WLAN -nterface
  
Bluetooth interface
  
Can be operated with the AC SMART App
  
Data communication in accordance with OCPP 1.6 (J)
–
 
Access control via RFID –
 
Load/charge management integrated (static) –
 
Load/charge management integrated (dynamic) – –

MID compliant energy meter – –

Wirelessmodemincl.SIMcard(LTE)withatrate – –

Powerline Communication with the vehicle – –

