Product description
66
Operating instructions – AC SMART
3.3 Product components
1
2
3
4
6
7
5
8
9
10

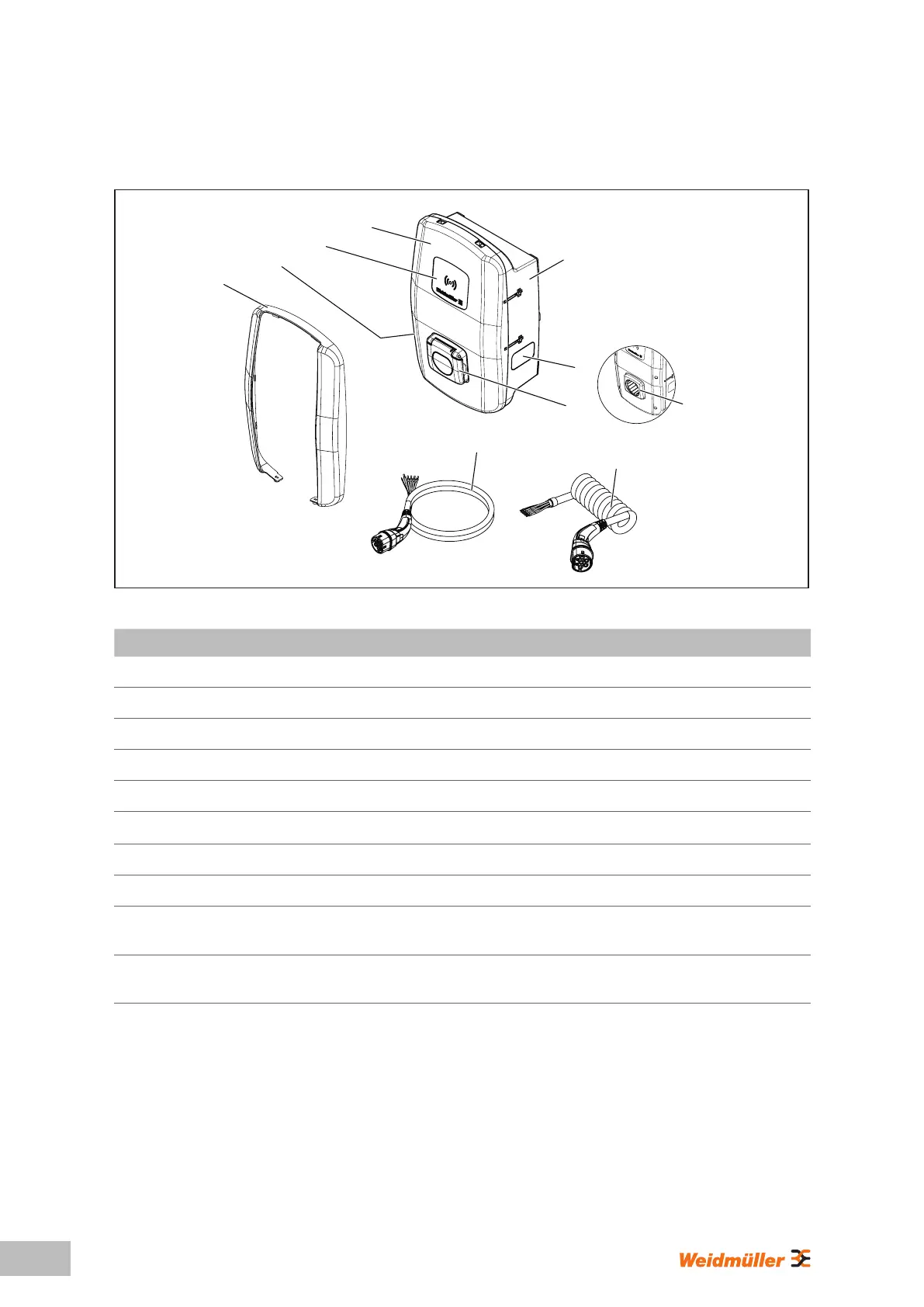

Image 3.3 Product components
Pos. Last name Description
1 Enclosure base part
2 Enclosure lid The enclosure cover is fastened to the right side of the EV charging box with hinges.
3 Interactioneld LEDstatusindicatorandRFIDeld(onlyVALUEandADVANCED)
4 Type plate
5 Design cover Cover over the lidscrewttings(onlyVALUEandADVANCED)
6 Charging socket
SOCKET variation: Charging socket type 2 with integrated shutter function
7 Plug holder PLUGvariation(ADVANCEDonly):Holdingxtureforunusedchargingplug
8 Vision panel To display the energy meter (ADVANCED only)
9 Charging cable
PLUG variation (ECO and VALUE): charging cable with type 2 plug and open cable ends
for installation in the EV charging box
10 Spiral charging cable
PLUG variation (ADVANCED only): charging cable with type 2 plug and open cable ends
for installation in the EV charging box
