上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD
10 / 52

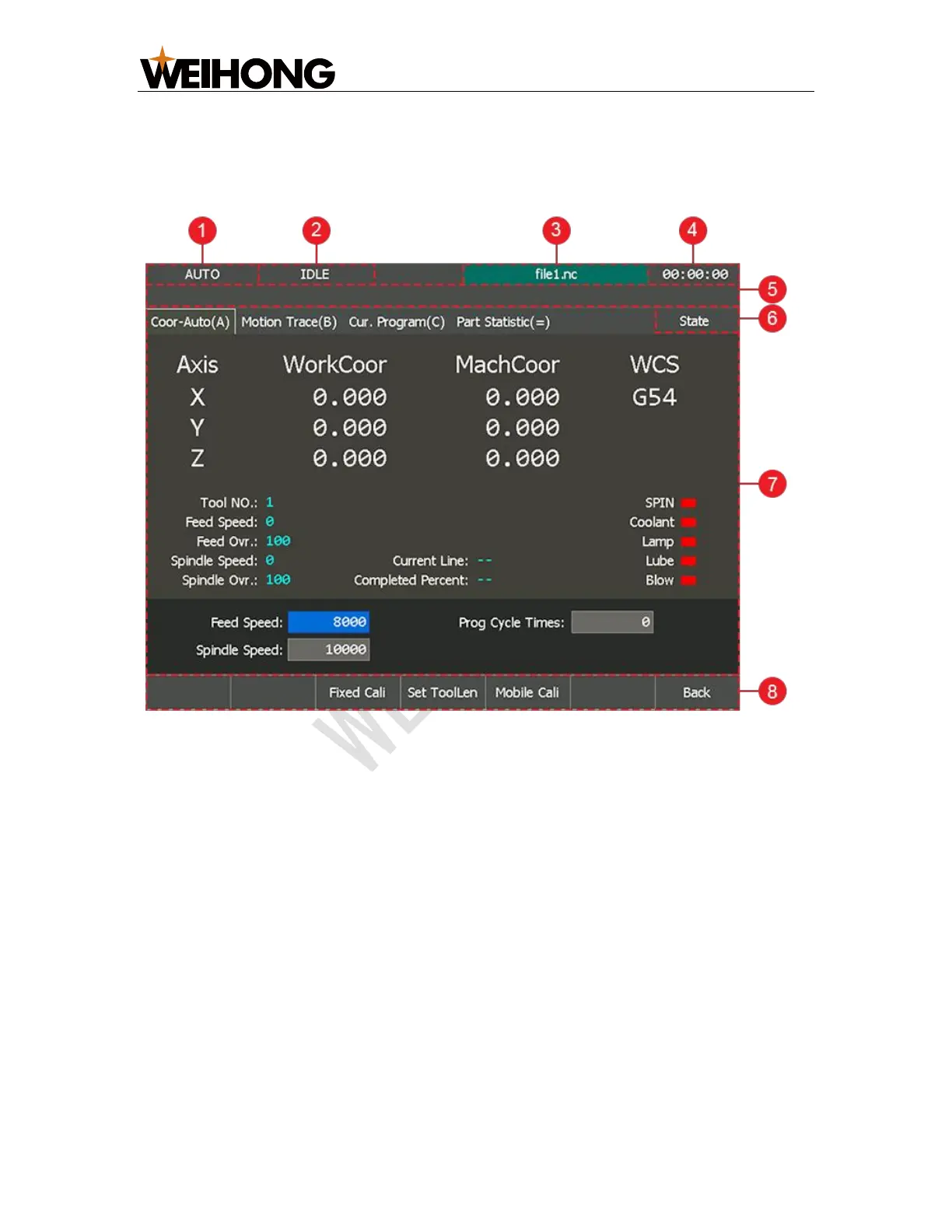

1.3 Main Software Interface
The interactive operational interface of NK260, NK280 and NK280B are almost the
same:
1. Show the current mode, including AUTO, JOG, etc.
2. Show the current status of the machine tool, including IDLE, RUNNING, etc.
3. Show the name of the currently loaded program file or the currently loaded
program task.
4. Show the machining time.
5. Show information such as working process or alarms.
6. Show the name of the current functional button.
7. Show child interfaces corresponding to each main function button.
8. Show commands corresponding to F1 ~ F7 on different operational interface.
