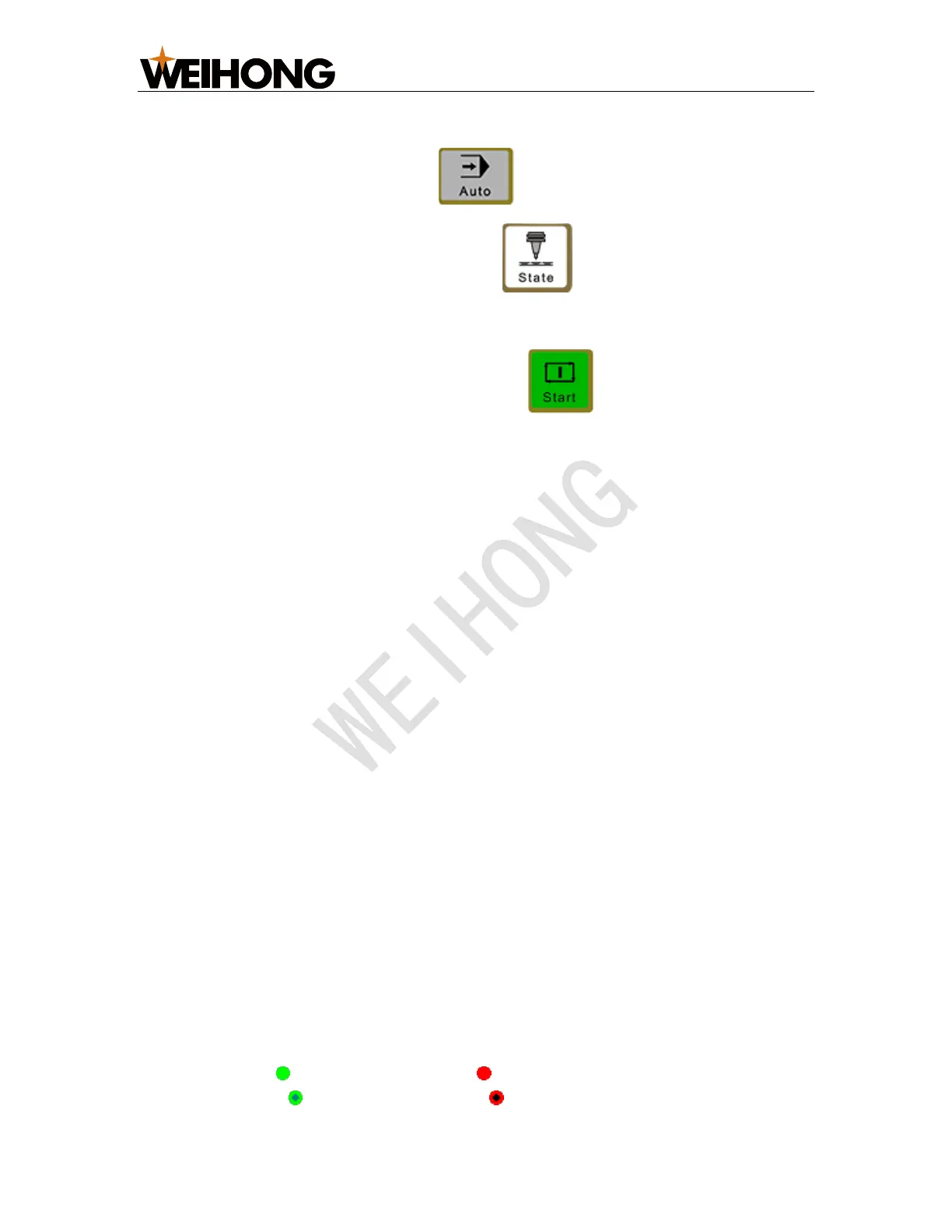

To guide machining by the handwheel, do the following:
1. To enter into AUTO mode, press .
2. To enter into Coor-Auto interface, press → A.
3. To enable handwheel guide, press F1.
4. To start machining by the handwheel, press .
5. Turn the handwheel in the clockwise direction.
The system starts machining and stops machining within 300ms until you stop
turning the handwheel.
Machining speed varies with the turning speed of the handwheel.
5 Common Operations
This section introduces the following common operations:
• Conduct a simulation test on ports.
• Modify system parameters.
• Back up system parameters.
• Check system logs.
• Save and recover coordinates.
• Check machining statistics.
• Compensate the tool.
• Compensate screw error.
• Execute instant calibration.
5.1 Conduct a Simulation Test on Ports
This operation is used to conduct a simulation test on input ports and output ports
to simulate hardware signal. And it helps to judge whether a port has output
depending on the status of the indicator light.
Indicator status of input ports and output ports for simulation is as follows:
• Input ports: means having a signal; means no signal.
• Output ports: means having a signal; means no signal.
