3.4 Set the Workpiece Origin
This operation is used to define the origin of the workpiece coordinate system
(WCS), that is, the workpiece origin.
It can be divided into the following according to the actual situation:
• Do centering.
• Do clearing.
• Execute mobile calibration.
• Set the offsets.
3.4.1 Do Centering
This operation is used to set the workpiece origin for regular-shaped workpieces.
It can be divided into the following according to the workpiece shape:
• Line centering: used to find the center point by two points on regular
rectangular workpieces.
• Circle centering:used to find the center point by three points on circular
workpieces.
Taking X-axis and line centering as an example, to do centering, do the following:

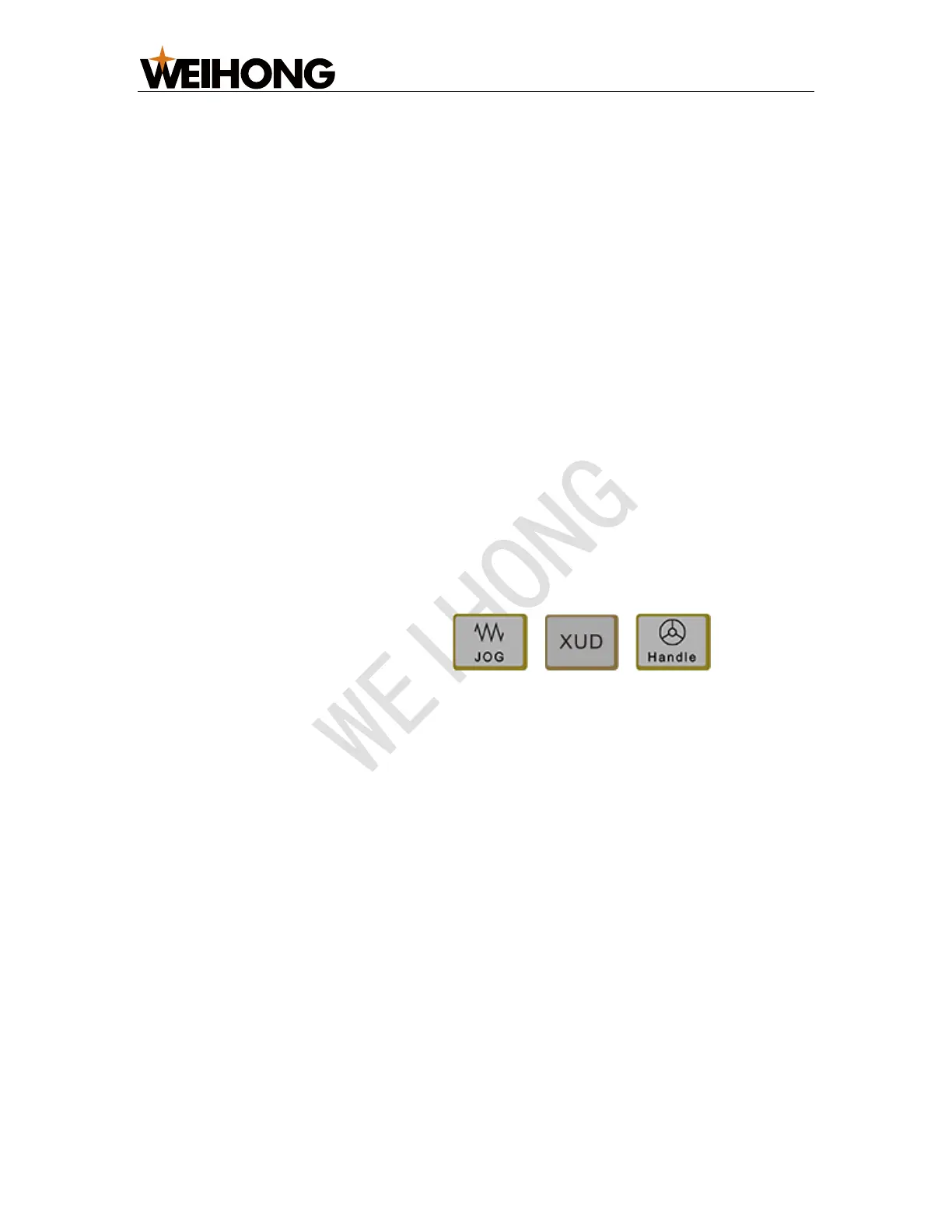

1. To enter into Manual mode, press / / .
To Next Page
