To execute array machining, do the following:

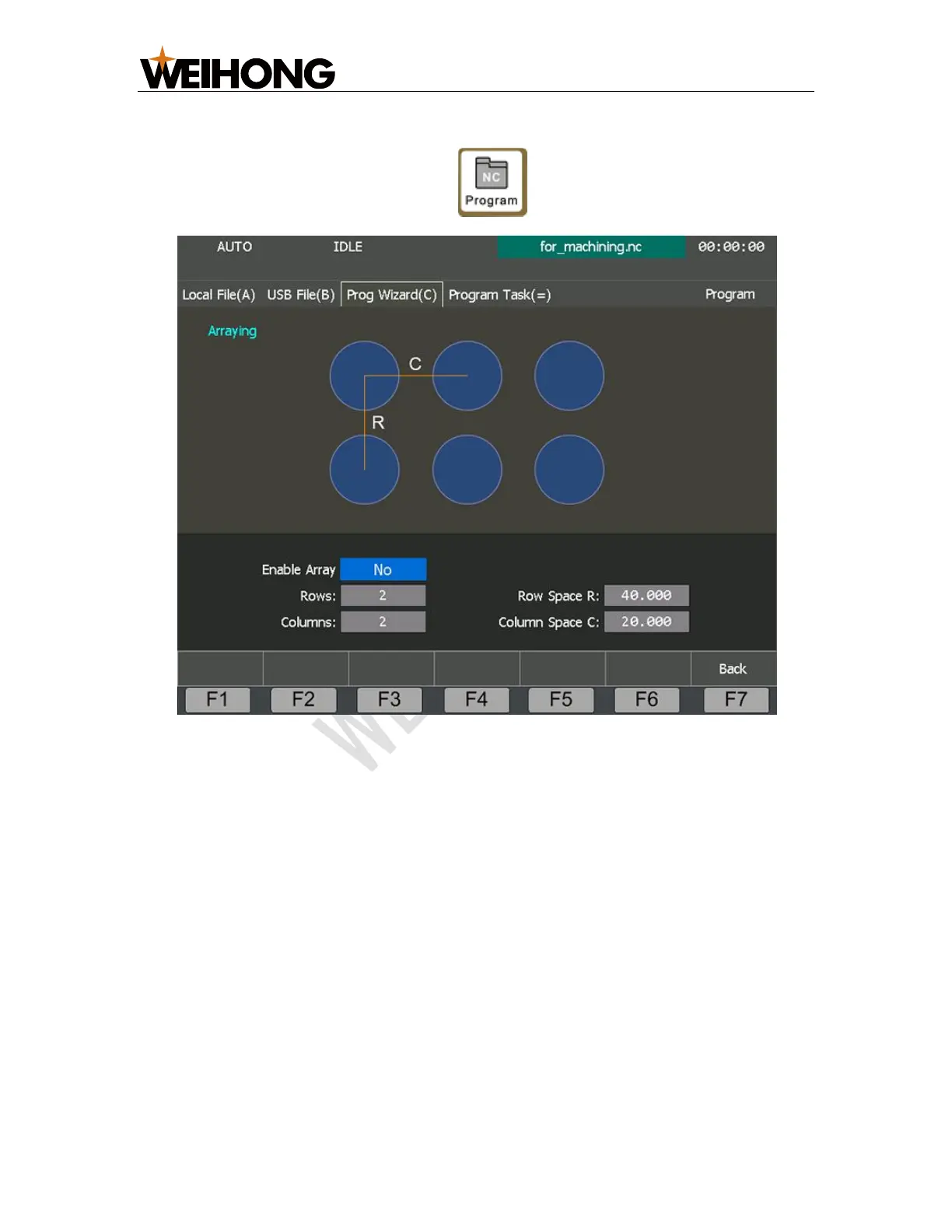

1. To enter into Arraying page, press → C → F7:
2. To enable array machining, move the cursor to the input box of Enable Array,
press Enter, and press 1.
3. Press ↑ / ↓ / ← / → to move the cursor to the related input box, and set a value.
Rows
The number of rows for array machining.
Columns
The number of columns for array machining.
Row Space
The space between each row.
Column Space
The space between each column.
When machining starts, the system pops up a dialog box to confirm whether to
enable array machining, and starts array machining after your confirmation.
