WEIHONG 200 Series User Manual

上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD
47 / 52

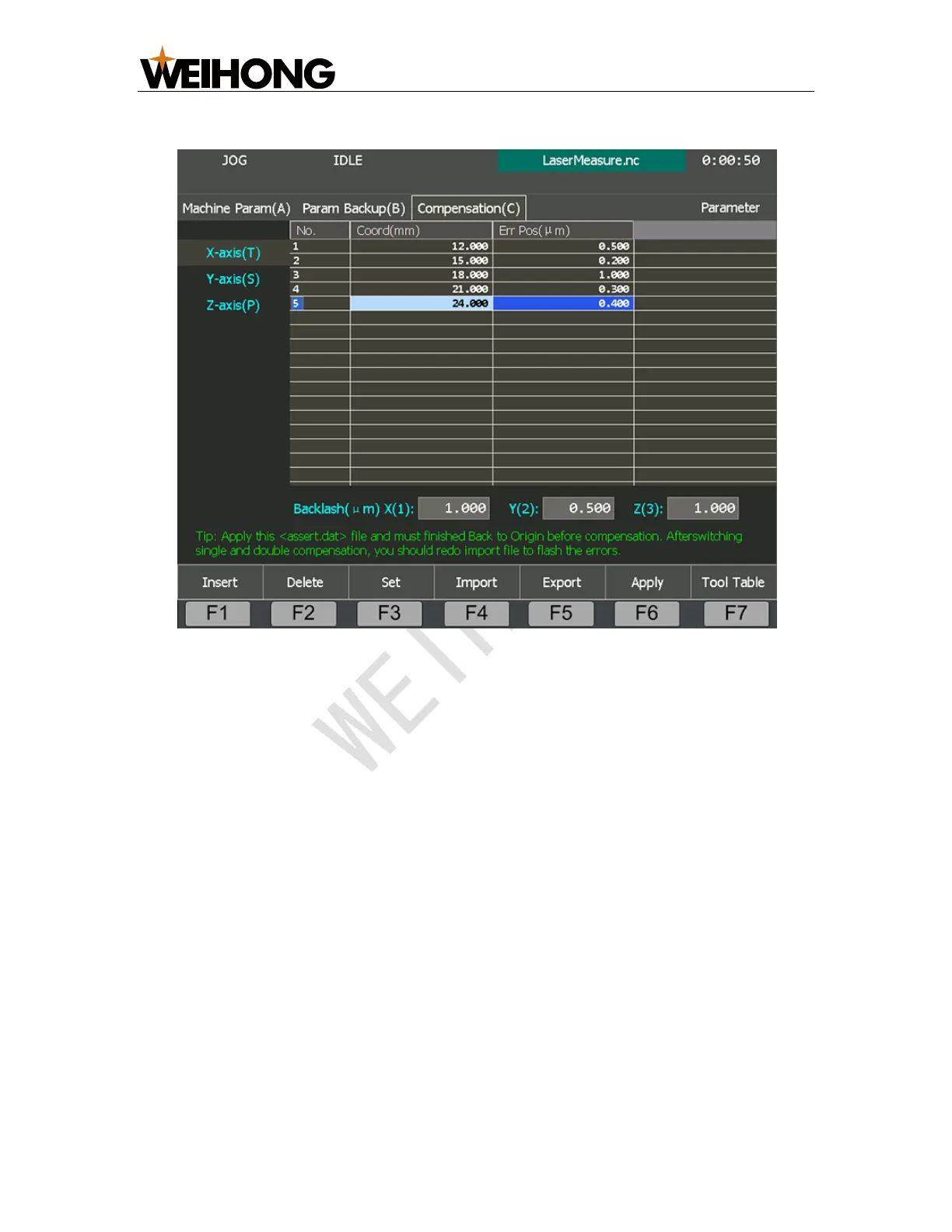

2. To enter into Screw Comp. page, press F7:
3. Do one of the following:
– Compensate screw error by an external file.
– Compensate screw error by related parameter settings.
5.8.1 Compensate Screw Error by an External File
This operation is used to automatically compensate screw error based on the error
data in the file, after the backward error and forward error of the corresponding
nominal coordinate of each coordinate axis are listed into the screw error
compensation file.
Before compensating screw error by an external file, do the following:
1. Write a compensation file for screw error, name it axeserr.dat, and save it into
the root directory of a USB flash disk.
2. Inset the USB flash disk into host.
To compensate screw error by an external file, do the following:
1. Press F4 → F1. Import Compensation Data dialog box pops up.
2. Select the target compensation data.
