70 EN LIFE-BASE
WM 68331 04/2021
4 Assembly
Attaching the ventilator and MEDUCORE Standard
Applies to • MEDUMAT Standard
2
• MEDUMAT Easy
CPR
• MEDUCORE Standard
Required auxiliary
equipment
Screwdriver with crosshead PH1
1. If available: Fasten the shoulder strap to the portable unit
(see "4.3 Attaching the belt to the portable unit", page 36).
2. With MEDUMAT Standard
2
and MEDUMAT Easy
CPR
:

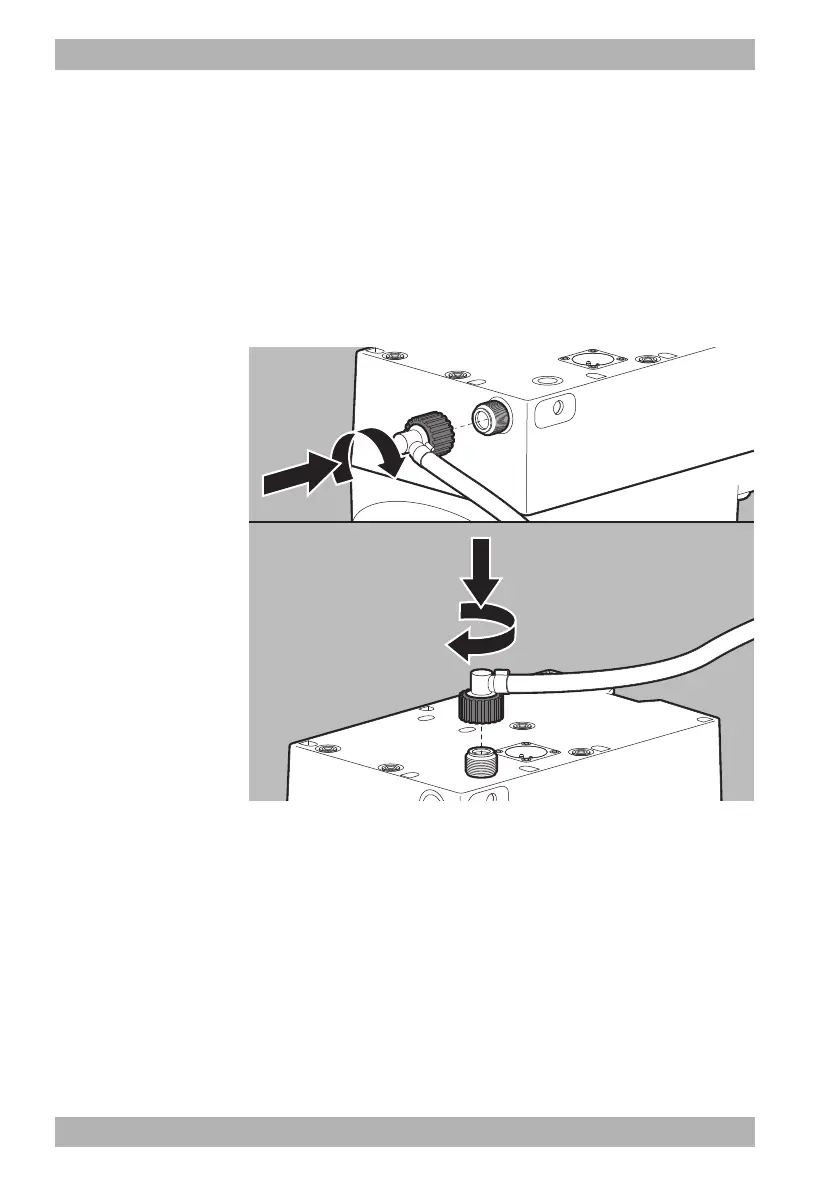

Connect the low-pressure hose to the compressed gas
connection on the side or on the rear of the ventilator.
3. Place devices with the control panel membrane facing down.
