WM 68331 04/2021
LIFE-BASE EN 109
6 Operation

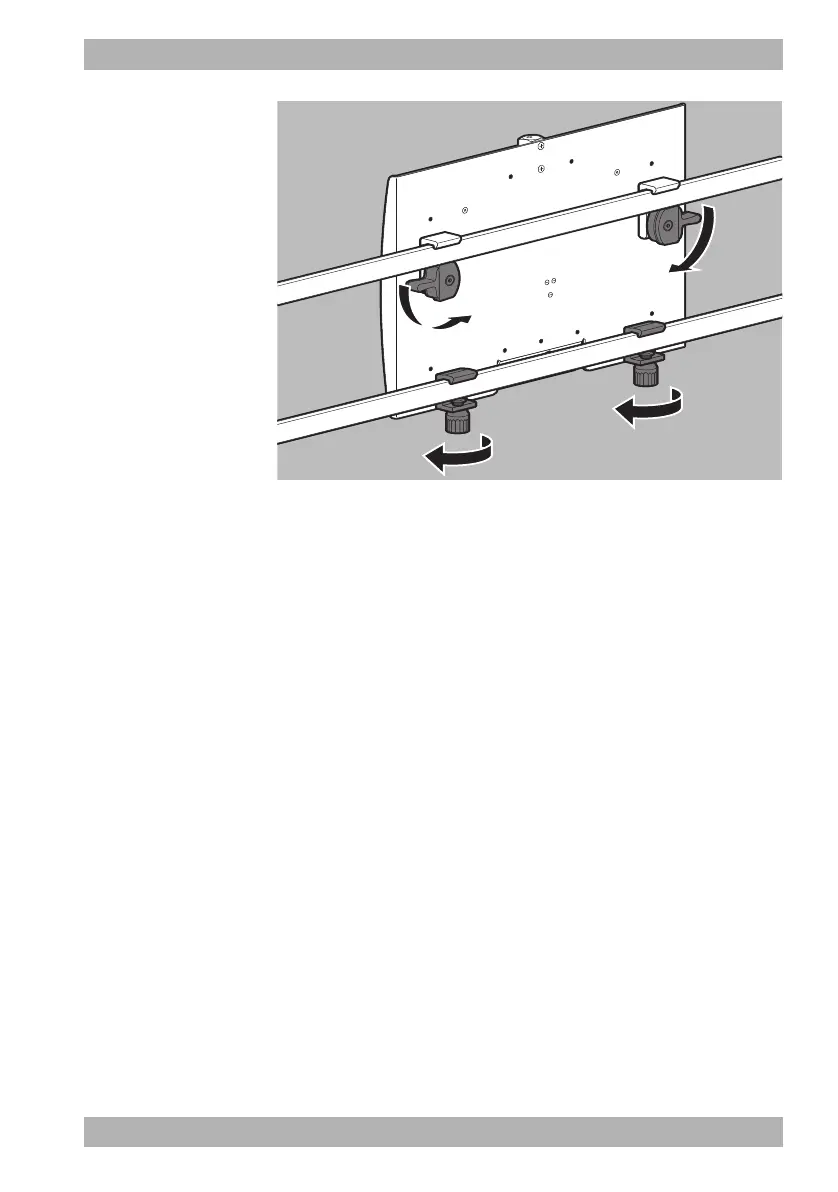

1. Push the locking levers downwards until the lock disengages.
2. With BASE-STATION Mini II and BASE-STATION 3 NG:
Undo the screws.
3. Remove the wall mounting from the equipment rail.
Result The wall mounting has been removed from the equipment rail.
6.5 Storing device accessories
Device accessories can be stored in protective bags and accessories
bags or fastened with tension belts and hook and loop straps to
the portable unit.
With LIFE-BASE Mini II you can fasten the breathing circuit to
the portable unit:
1. Wind the patient hose around the device.
2. Attach the patient valve to the patient valve holder.
Result With LIFE-BASE Mini II the breathing circuit is fastened to
the portable unit.
