4 Assembly
• The holes for the device and the spacer plate must be
aligned on top of each other.

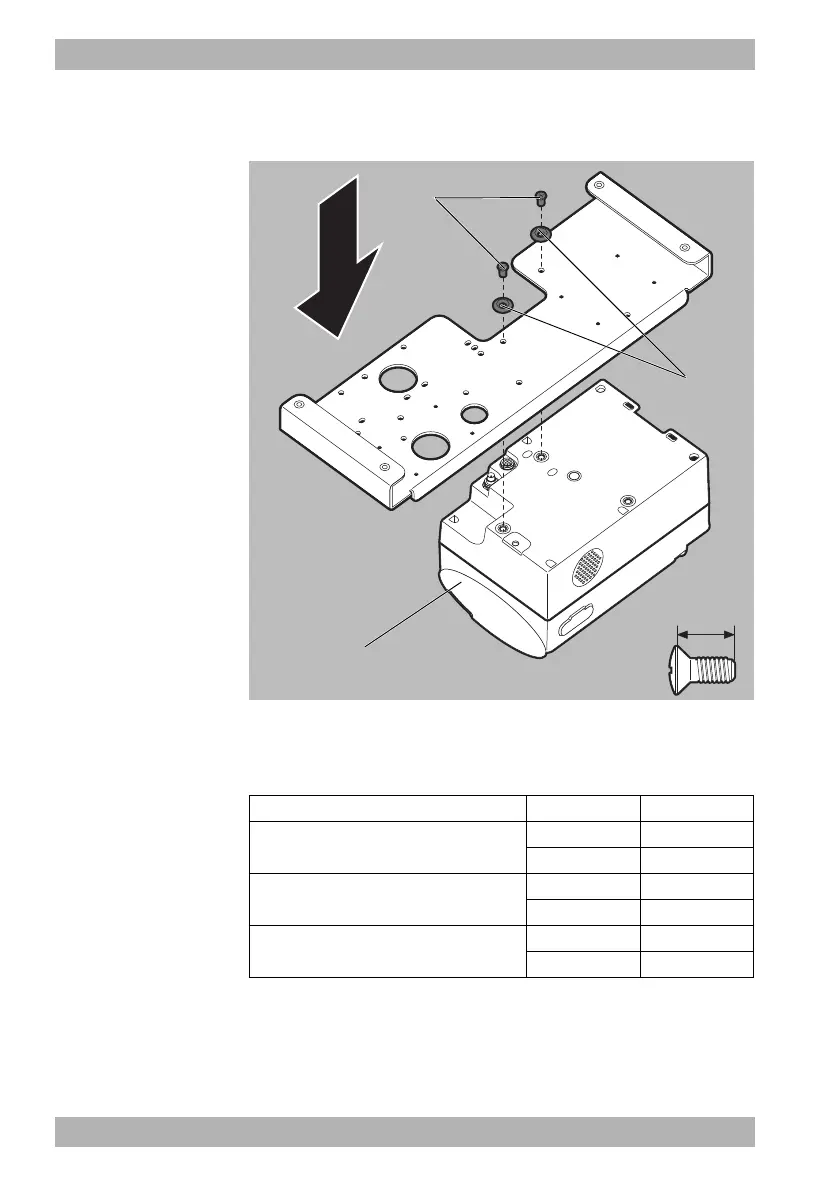

5. Use screws 100 and protective disks 104 to screw the device to
the spacer plate.
6. Connect the device to the power supply according to
the instructions for use.
Device Part Number
MEDUCORE Standard
2
100 4
104 4
MEDUCORE Standard on
LIFE-BASE 1 NG XL
100 3
104 3
MEDUCORE Standard on
LIFE-BASE 3 NG
100 2
104 2
104
100
10 mm
MEDUCORE Standard
