124 EN LIFE-BASE
WM 68331 04/2021
7 Disassembly
5. If available: Remove the accessories bag from the portable unit
or protective bag (see "7.2 Removing the accessories bag from
the portable unit or protective bag", page 115).
Result The portable unit is prepared for disassembly of the device.
7.5.2 Removing the device from LIFE-BASE light XS
Applies to • MEDUMAT Standard
2
• MEDUVENT Standard
Required auxiliary
equipment
Screwdriver with crosshead PH1
Requirement Disassembly is prepared (see "7.5.1 Preparing disassembly",
page 123).

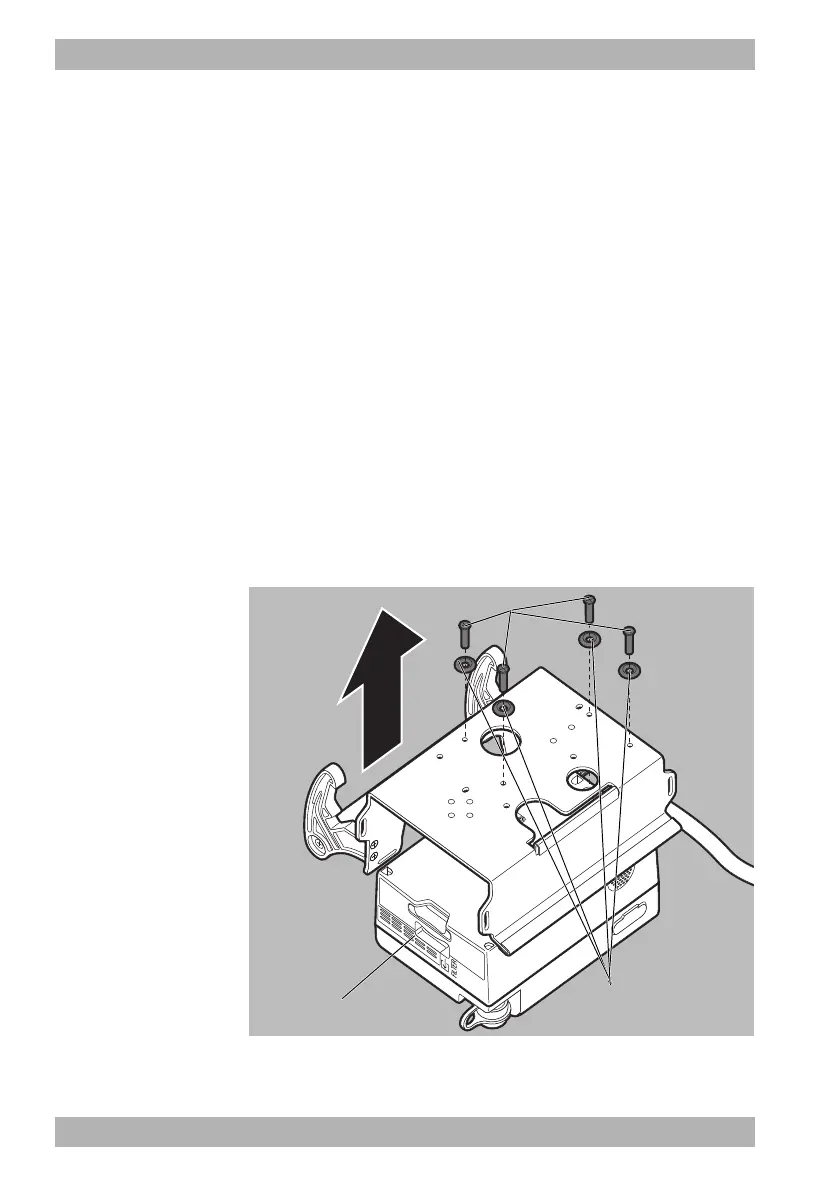

1. Place the portable unit and device with the control panel
membrane facing downwards.
2. Disconnect the device from the power supply according to
the instructions for use.
3. Undo 4 screws 100 and 4 protective disks 104 from
the portable unit.
