WM 68331 04/2021
LIFE-BASE EN 43
4 Assembly
4.5 Attaching the devices to
the portable unit
4.5.1 Attaching the device to LIFE-BASE light XS
Applies to • MEDUMAT Standard
2
• MEDUVENT Standard
Required auxiliary
equipment
Screwdriver with crosshead PH1
1. Position the device with the control panel membrane
facing downwards.

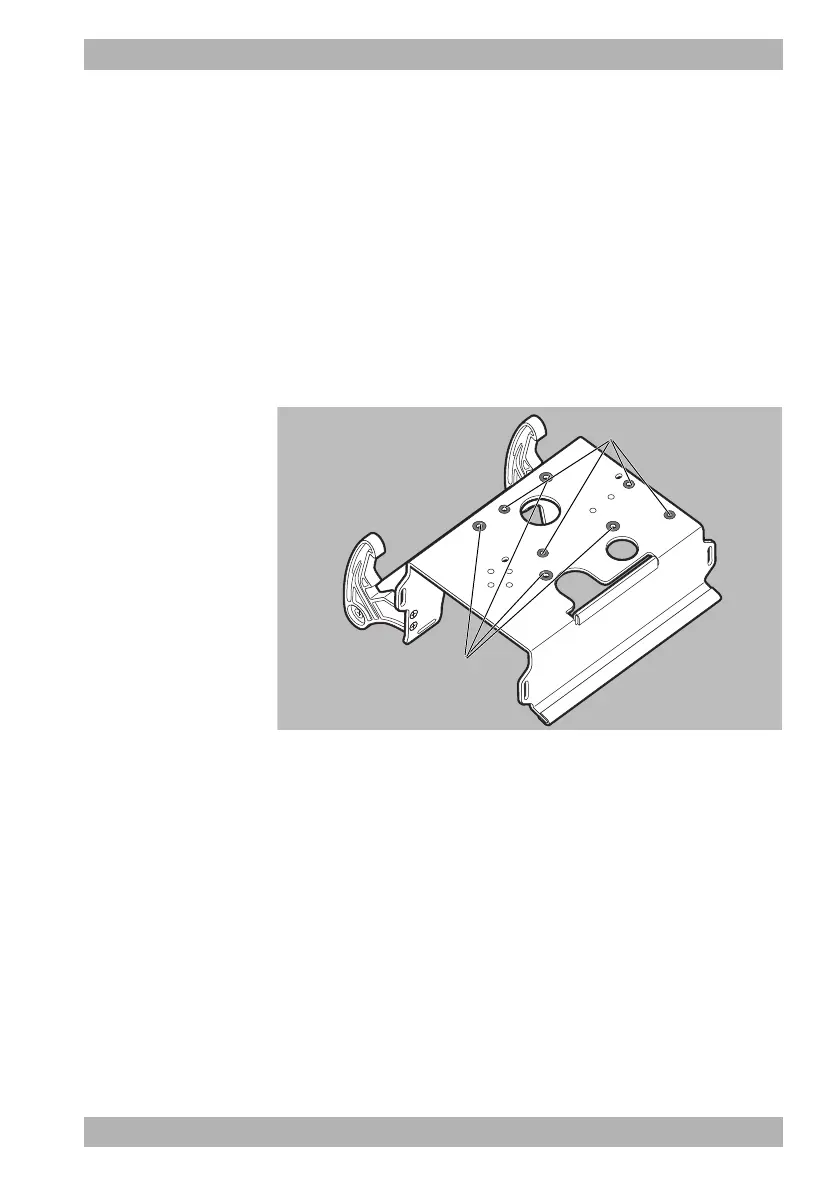

2. Determine the holes for the device on the portable unit.
3. Place the portable unit on the device.
When doing so, note: The holes for the device and the portable
unit must be aligned on top of each other.
MEDUVENT Standard
MEDUMAT Standard
2
