Weinmann LIFE-BASE Series User Manual

WM 68331 04/2021
LIFE-BASE EN 61
4 Assembly

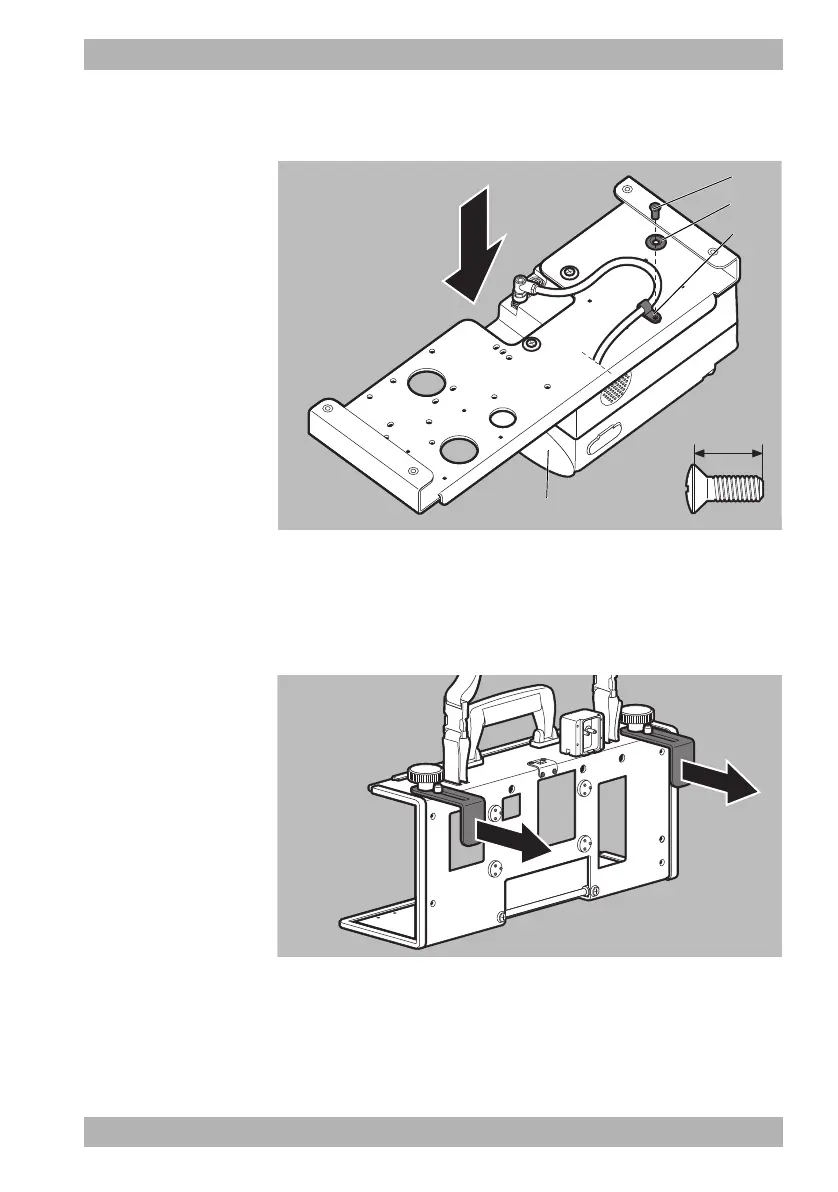

7. With MEDUCORE Standard on LIFE-BASE 3 NG:
Place the cable for the power supply in the cable clamp 105.
8. With MEDUCORE Standard on LIFE-BASE 3 NG:
Screw 1 cable clamp 105 and 1 protective disk 104
to the spacer plate using 1 screw 101.
When doing so, note: The flat side of the cable clamp
faces down.
9. With LIFE-BASE 1 NG XL:
• Undo the knurled screws.
• Pull out the hangers.
105
101
104
12 mm
MEDUCORE Standard
