4 Assembly

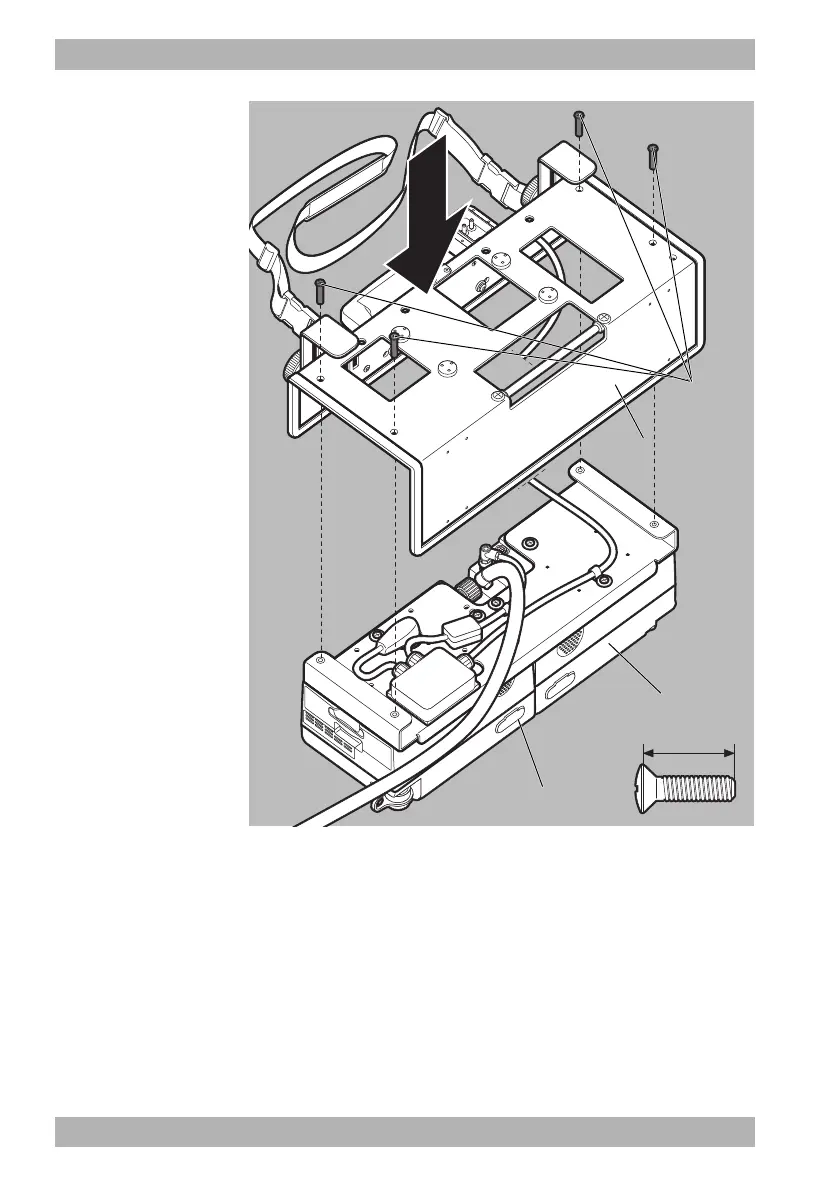

14. With LIFE-BASE 1 NG XL: Use 4 screws 102 to screw the spacer
plate to the portable unit
or
With LIFE-BASE 3 NG: Use 4 screws 102 and 4 protective
disks 104 to screw the spacer plate to the portable unit.
15. Complete attachment of the devices to the portable unit
(see "4.5.7 Completing assembly", page 80).
Result The devices are attached to the portable unit.
102
16 mm
MEDUMAT Standard
2
MEDUCORE Standard
LIFE-BASE 1 NG XL
