WM 68071 05/2021
MEDUMAT Standard
2
EN 213
10 Alarms and error messages
The device displays alarms as follows:
• As text in the alarm line on the display
• Acoustically as an audible alarm (via the loudspeaker on
the underside of the device)
• With the alarm light (in the top right-hand corner on
the front of the device)

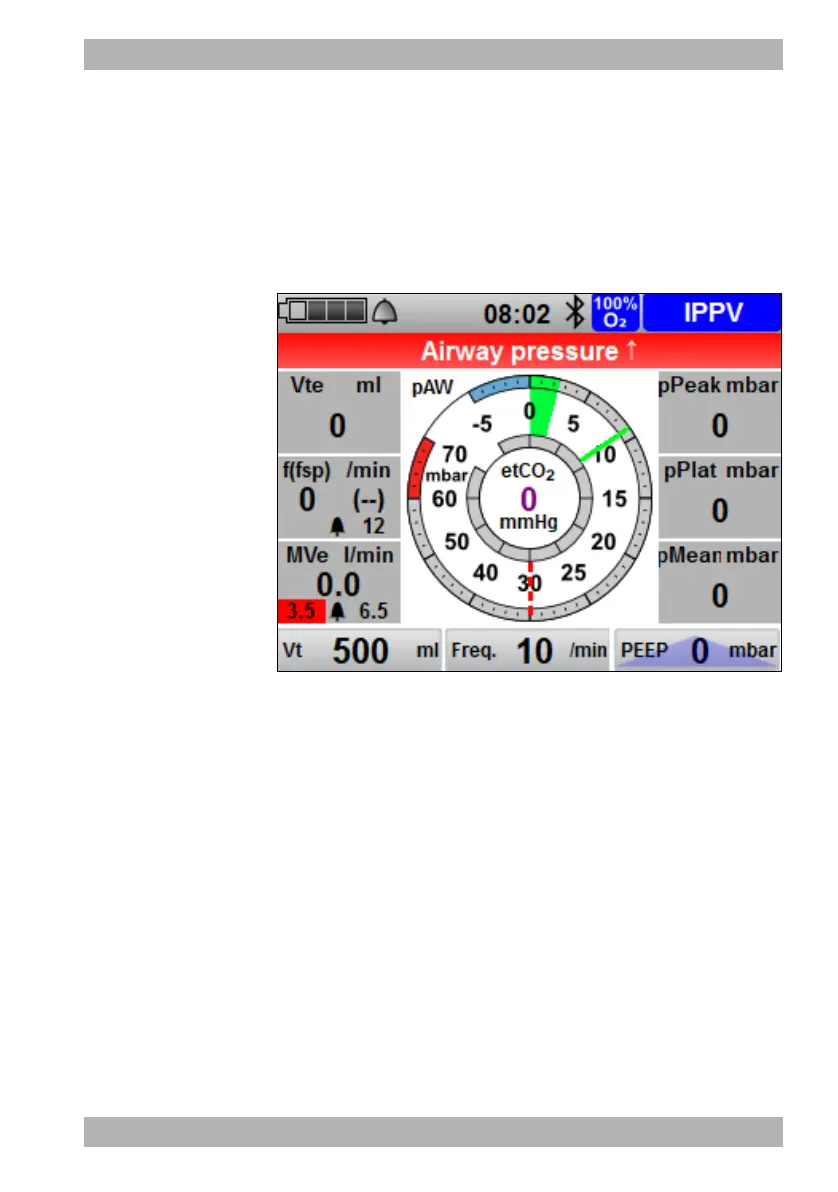

10-1 Alarm line with airway pressure alarm
The device additionally displays physiological alarms through
the flashing of the respective parameter field.
