3 Description
3 Description
3.1 Overview

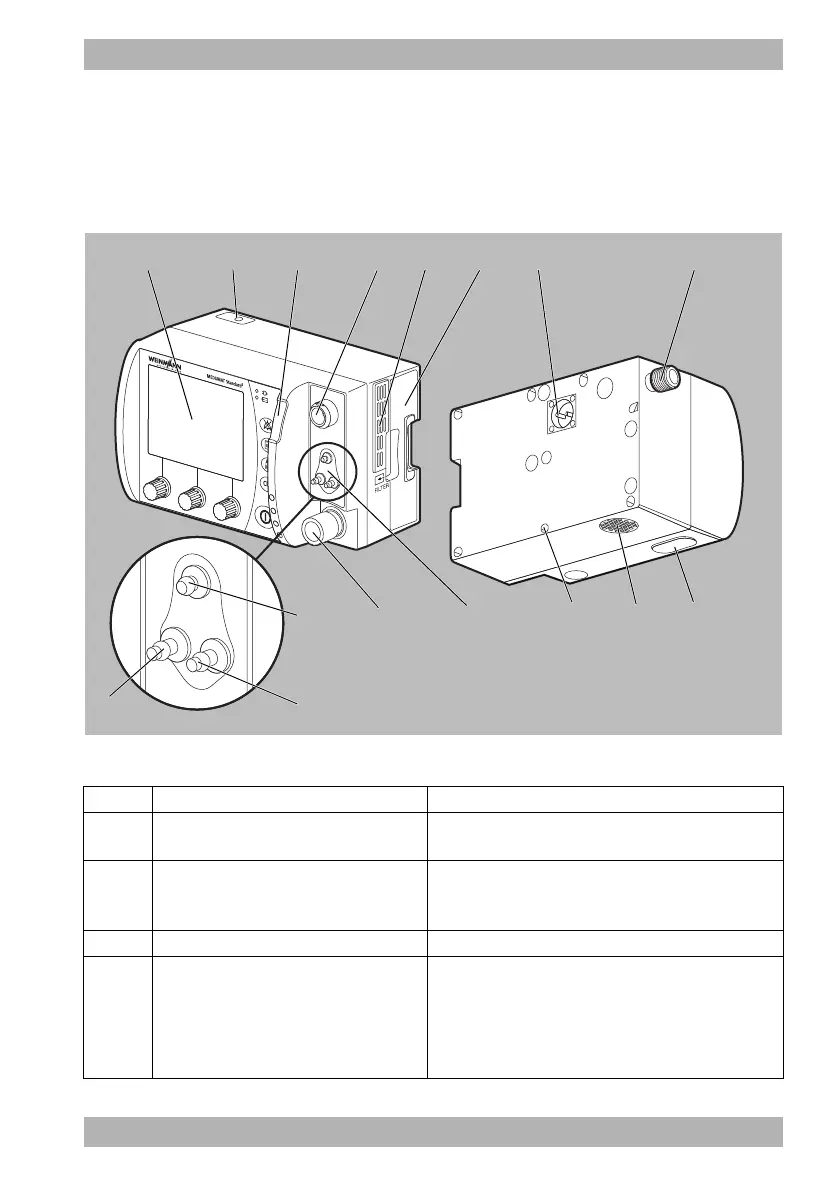

3-1 Device
1 34
2
67 8
9
5
10
121314
1516
11
No. Designation Description
1 Display
Displays settings and current values
(see "3.4 Symbols on the display", page 31).
2 Service cover
Used for servicing purposes. May only be opened
by the manufacturer or persons authorized by the
manufacturer.
3 Alarm light Indicates high-priority alarms visually.
4 Accessories connection
• Connects the device to MEDUtrigger.
• Connects the device to the FlowCheck sensor
connection line.
• Connects the device to the FlowCheck sensor
connection line with MEDUtrigger.
To Next Page
