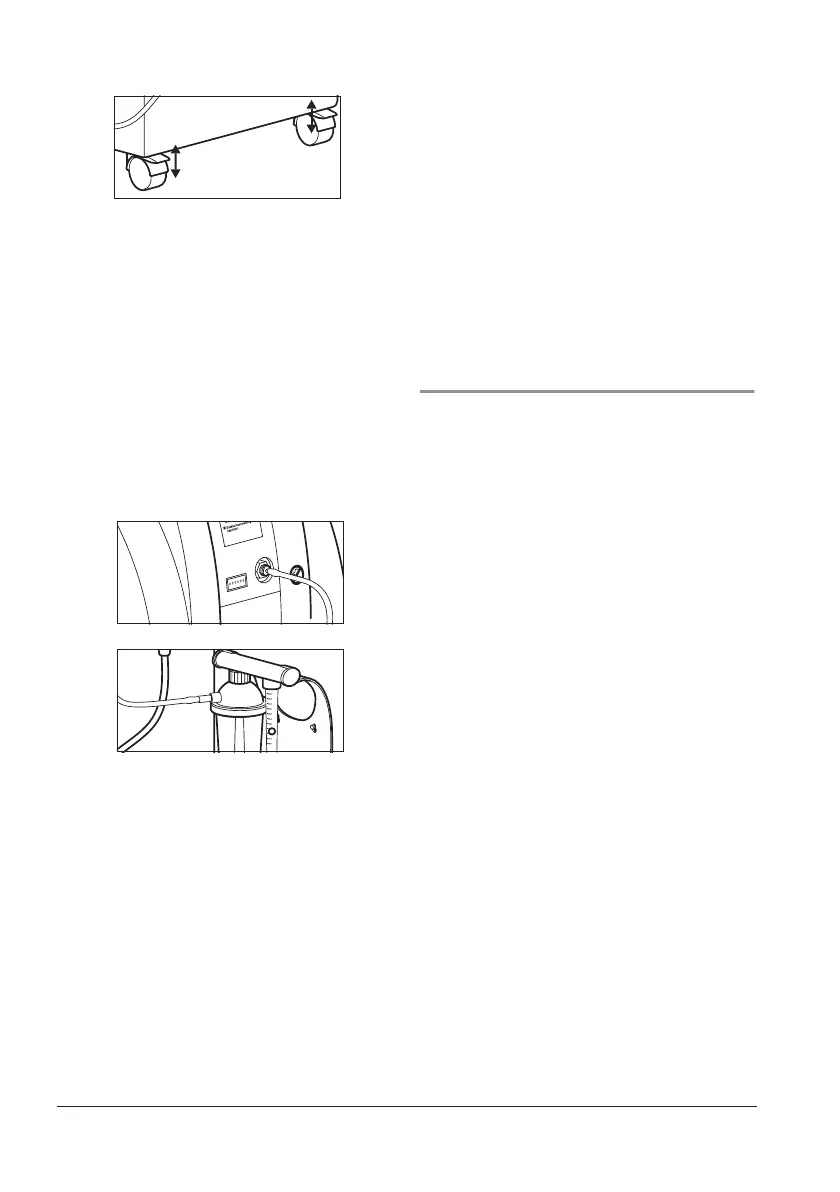

Arresting and releasing the
OXYMAT 3 castors
OXYMAT 3 has a brake on each of the front
castors.
• Press the brake lever down with your foot
to arrest the castors.
• To release the brake, lift the brake lever.
4.2 Connecting to dosage
monitor and nasal cannula
1. Screw connecting nipple with union nut 6
onto oxygen outlet 5 .
2. Attach one end of long 20-meter con-
necting tube 7 to oxygen outlet 5 of the
OXYMAT 3 and the other end to
connection 23 on the dosage unit of the
dosage monitor 9.
3. Now attach short connecting tube 11
(3 meters) to nasal cannula 12 and to
connection on bubble humidifier 26.
4. Now you can use the power cord to con-
nect the OXYMAT 3 to a power outlet.
Please note that it needs a mains voltage
of 230 V.
Please make sure that all connections are
firm.
5
,
0
4
,
0
3
,
0
2
,
0
1
,
0
0
,
5
The long hose is connected to the oxygen out-
let of the OXYMAT 3.
Den långa slangen ansluts till oxygenutloppet
på OXYMAT 3
El tubo flexible largo se conecta a la salida de
oxígeno del OXYMAT 3.
