10.3 Convotherm 4 12.20 injection gas appliance

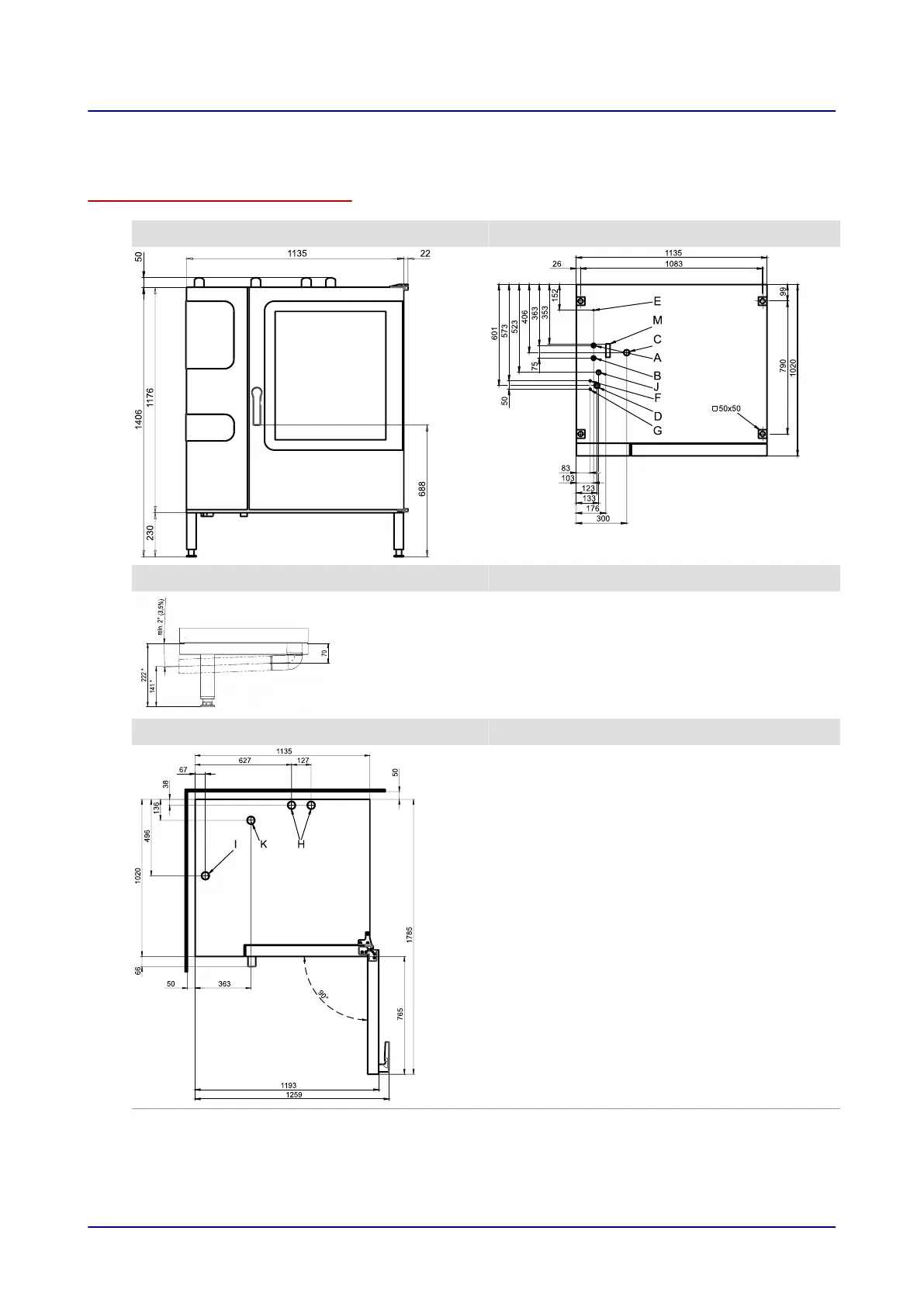

Dimensions and connection points for C4 12.20 (right-hinged appliance door)
Front view Connection points in appliance floor
Detailed view of drain connection
* Distance depends on how far the
appliance feet are extended (max. +25 mm)
View from above with wall clearances Meaning of labelled elements
A Water connection Soft water G 3/4''
B Water connection Hard water G 3/4''
C Drain connection DN 50
D Electrical connection
E Equipotential bonding
F Rinse-aid connection (optional)
G Cleaning-agent connection (optional)
H Air vent Æ 50 mm
I Ventilation port Æ 50 mm
J Gas connection
K Exhaust outlet Æ 60.3 mm
M Safety overflow 80 x 25 mm
10 Connection diagrams
Installation manual 105
