6.2.2 Positions of the fan burners and main gas valve
Position of the fan burners for appliance size 12.20

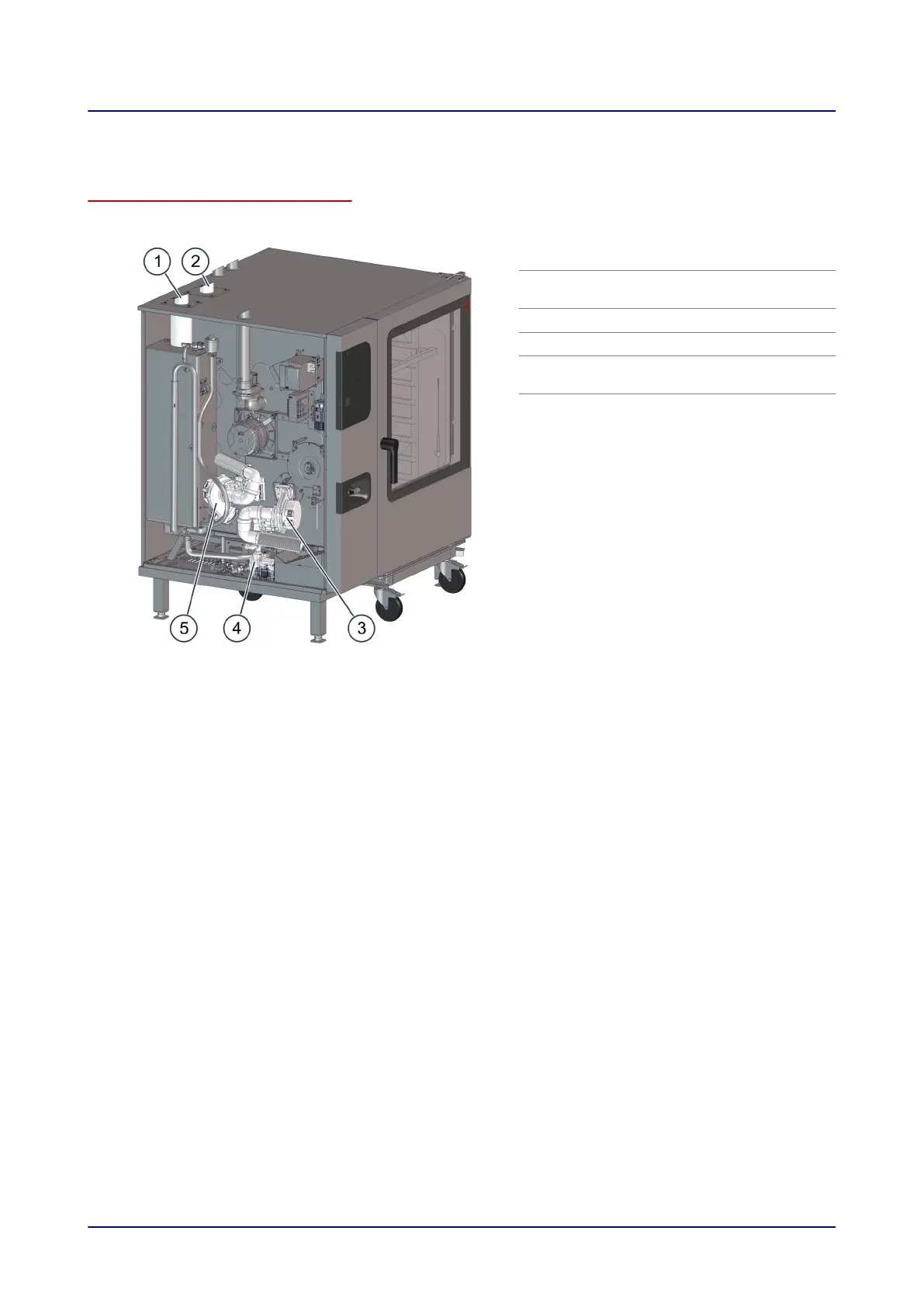

The following illustration shows a size 12.20 combi oven gas appliance with boiler:
Item Name
1
Exhaust outlet from boiler burner (only on
models with boiler not steam injection)
2
Exhaust outlet for convection burner
3
Convection burner
4
Main gas valve, connection to gas supply in
appliance floor
5
Boiler burner (only on models with boiler not
steam injection)
6 Installation
Installation manual 51
