3.6 Safety devices
Meaning
The combi oven has a number of safety devices to protect the user from hazards. It is absolutely essential that all safety
devices are fitted, secured correctly and in working order when operating the combi oven.
Position and function

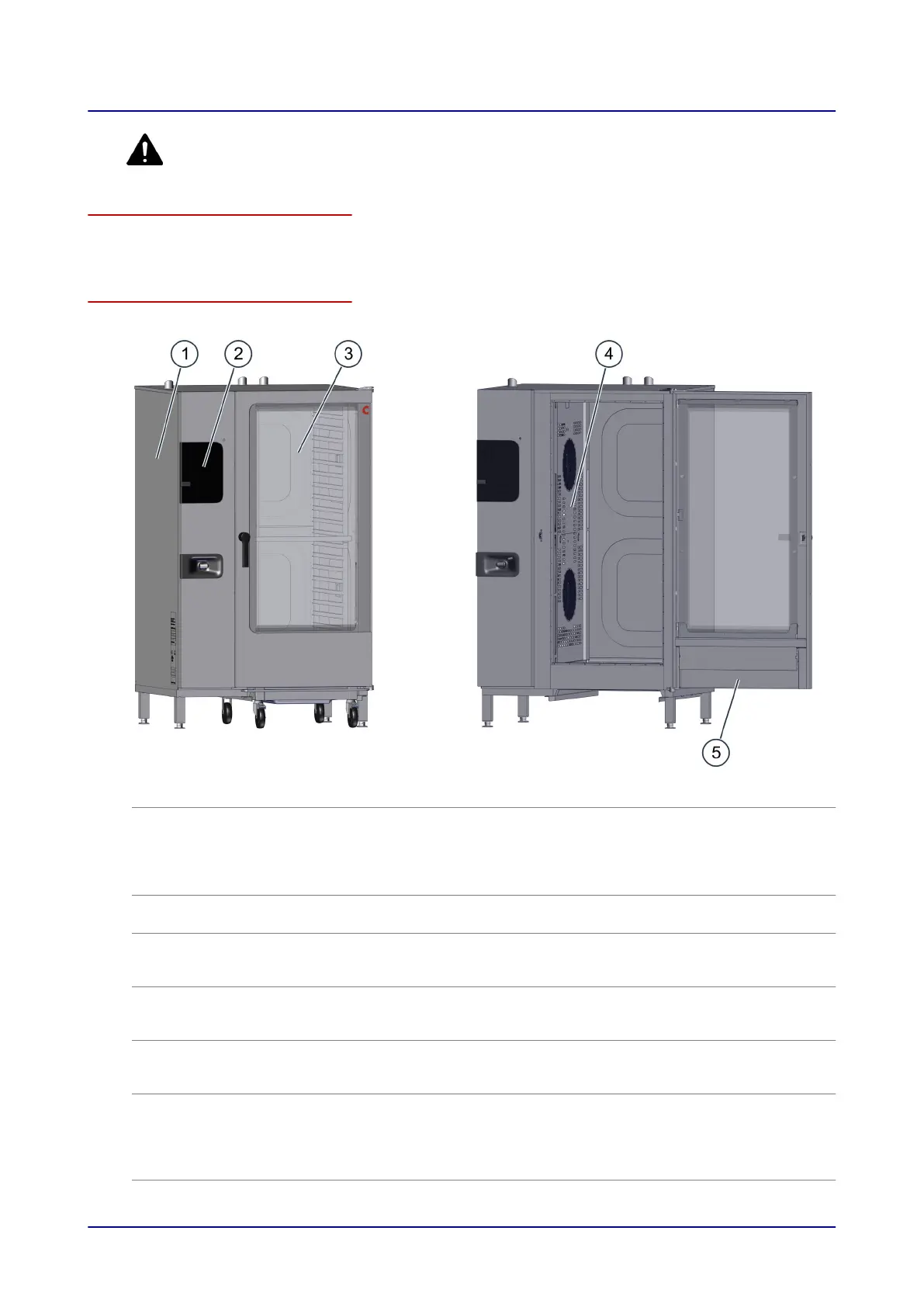

The following illustration shows a size 20.20 electric combi oven as an example of all floor-standing units:
Item Protective device Function Check
1
Cover can only be removed
using tool
■
Prevents live parts from being
touched accidentally
■
Prevents access to the moving fan
wheel(s) in the wiring compart-
ment
Check that the cover is in place
2
Operating panel can only
be removed using a tool
Prevents live parts from being
touched accidentally
Ensure that the operating panel is in
place
3
Appliance door Protects the user and outside envi-
ronment from hot steam
Check the door pane regularly for
scratches, cracks, indentations etc.
and replace it if any are found
4
Suction panel in cooking
chamber; can only be re-
moved using a tool
Prevents access to the moving fan
wheel(s) and ensures good heat dis-
tribution
See 'Releasing and securing the
suction panel' in the user manual
5
Built-in preheat bridge in
appliance door
Prevents scalding from escaping
steam when the loading trolley is not
in the appliance during preheating
None
6
(no picture)
Safety thermostat
■
Boiler
■
Cooking chamber
Switches off the appliance if temper-
ature too high
An error code is output in the event
of a fault
(Please contact an authorized serv-
ice company to reset the safety ther-
mostat)
3 For your safety
Installation manual 23
