2.2 Layout and function of the operating panel

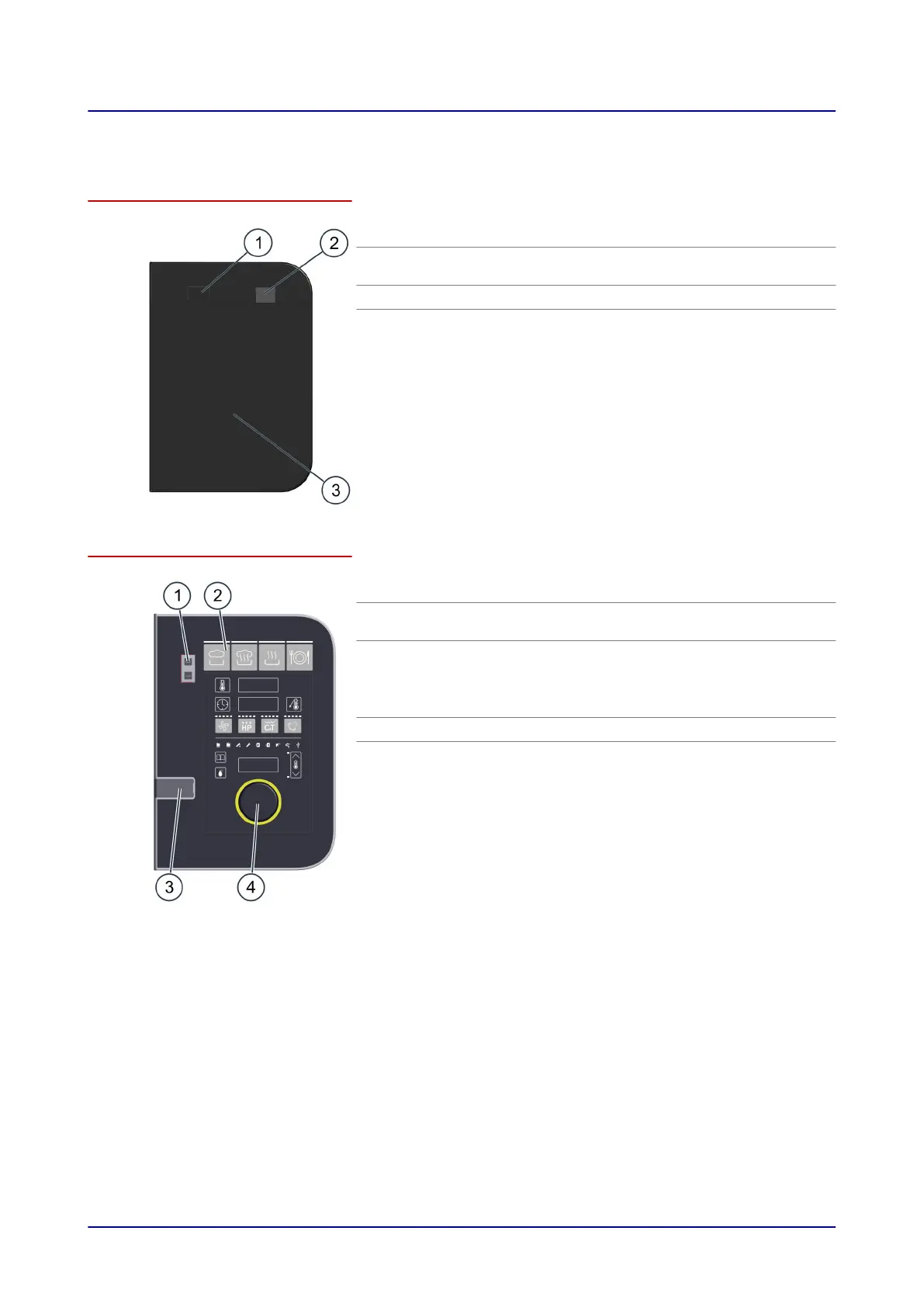

Layout and elements of the easyTouch operating panel
Item Name Function
1
Appliance
ON/OFF switch
Switches the combi oven on and off
2
USB port For connecting a USB stick
3
Full touch screen
display
Central controls for appliance
■
Appliance operated by touching icons on the
control panel (full touch screen display)
■
Status displays
Layout and elements of the easyDial operating panel
Item Name Function
1
Appliance
ON/OFF switch
Switches the combi oven on and off
2
Control panel Central controls for appliance
■
Buttons for entering the cooking programs
■
Displays showing the values you have set
■
Prompts for the user
3
USB port For connecting a USB stick
4
C-Dial Combined rotary knob and pushbutton for adjust-
ing and setting the cooking parameters.
