6.6 Installing the fully automatic oven cleaning system
6.6.1
Layout of the fully automatic oven cleaning system
Cleaning agent and rinse aid
Use only the cleaning fluids specified here to clean the combi oven.
NOTICE Damage caused as a result of improper use of cleaning agents will invalidate any warranty claims.
The following table shows the approved cleaning agent and rinse aid:
Name Product Label color
Cleaning agents ConvoClean forte / new red
Rinse aid ConvoCare green

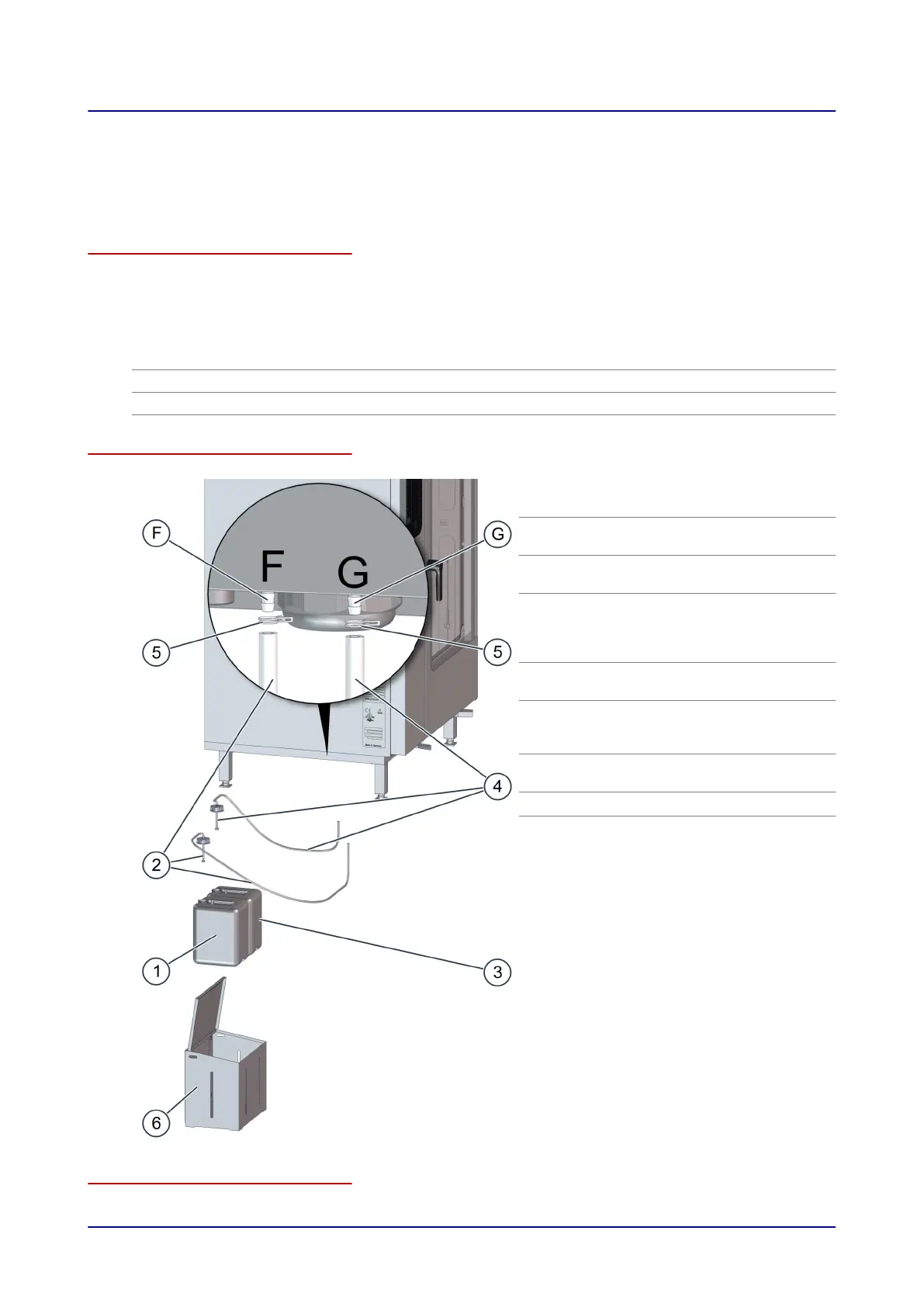

Layout of the fully automatic oven cleaning using connected cannisters
Item Name Colour cod-
ing
F
Appliance connector for rinse
aid supply
green (letter-
ing)
G
Appliance connector for
cleaning agent supply
red (lettering)
1
Canister containing
ConvoCare rinse aid (ready-
to-use solution in defined
mixing ratio)
green (label)
2
Delivery tube for rinse-aid
suction nozzle
green (tube)
3
Canister containing
ConvoClean new or
ConvoClean forte
red (label)
4
Extractor tube for cleaning
agent suction nozzle
red (tube)
5
D10 wire clip -
6
Box for cleaning-fluid canis-
ters (optional accessory)
-
Box for cleaning-fluid canisters (optional accessory)
The box for the cleaning-fluid canisters is an optional accessory for the combi oven and is available from the manufacturer.
