2 Design and function
2.1
Design and function of the combi oven
Components and function (electric appliances)

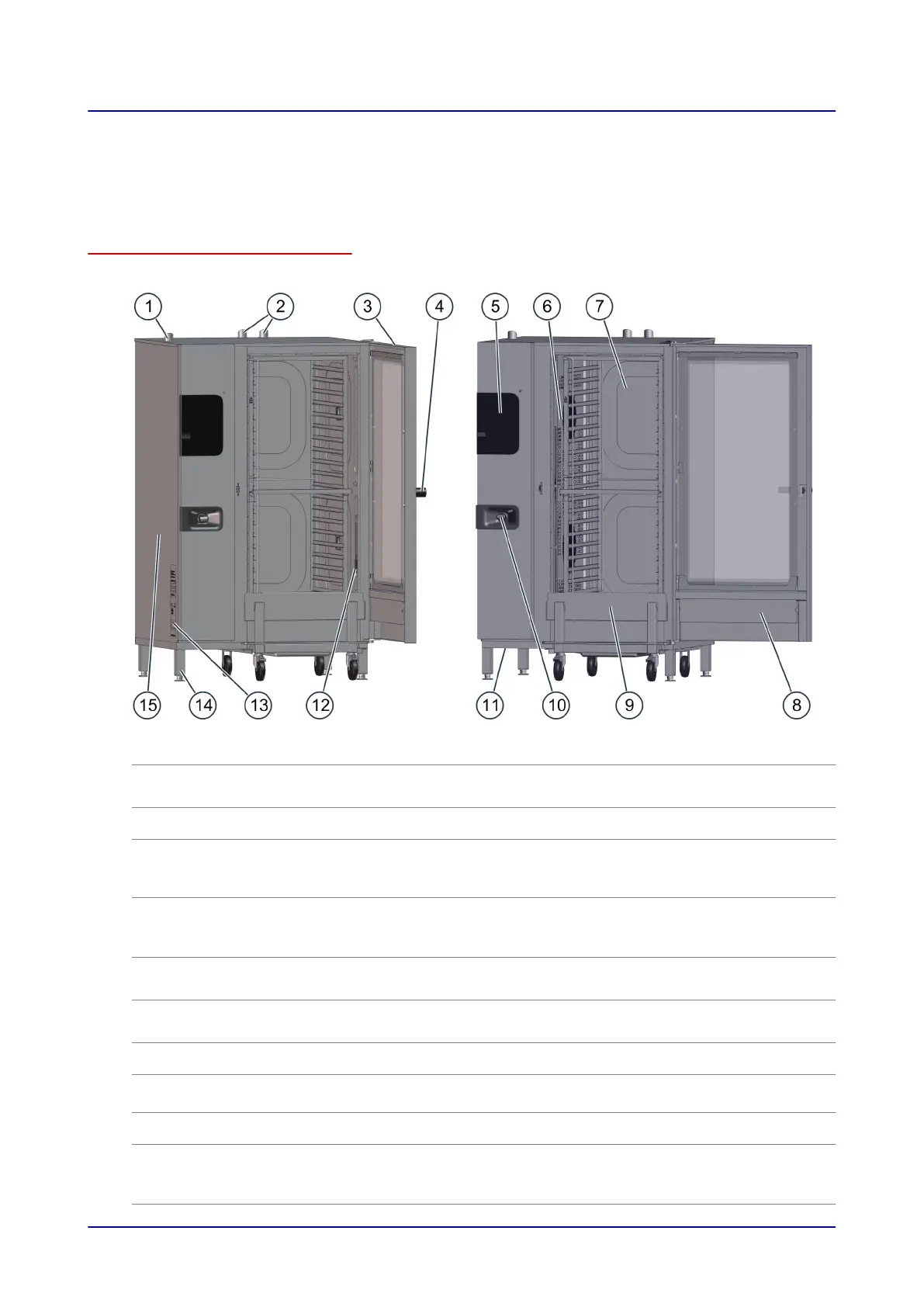

The following illustration shows a size 20.20 combi oven as an example for all electric appliances:
Item Name Function
1
Ventilation port
■
External air intake for removing the moisture from the cooking chamber
■
Smooths out any pressure fluctuations in the cooking chamber
2
Air vent Allows hot vapour to escape
3
Appliance door
■
Closes the cooking chamber
■
Can slide back beside the appliance when opened in order to save space
("disappearing door") (optional)
4
Door handle
■
Opens and closes the appliance door
■
On-latch position for opening the appliance safely
■
Antibacterial material containing silver ions ("HygieniCare")
5
Operating panel
■
Used for operating the appliance
■
Antibacterial ("HygieniCare")
6
Suction panel
■
Distributes the heat evenly inside the cooking chamber
■
Separates the fan compartment from the cooking chamber
7
Cooking chamber Contains the food during cooking operation
8
Built-in preheat bridge in appli-
ance door
Used for safety purposes during preheating and reduces energy wastage
9
Loading trolley Holds standard-sized food containers
10
Recoil hand shower
(this is not fitted on certain appli-
ances)
■
Intended solely for rinsing out the cooking chamber with water
■
Retracts automatically into the holder after use
■
Antibacterial ("HygieniCare")
2 Design and function
Installation manual 11
