Item Name Function
11
Ventilation slots underneath the
appliance
■
Used for appliance ventilation
■
Must not be covered
12
Core temperature probe, sous-
vide sensor (optional)
■
Measures the core temperature of the food being cooked
■
A
vailable in two connection options: permanent internal connection or tempo-
rary external connection
13
Type plate Identifies the appliance
14
Appliance feet Can be adjusted in height to allow the appliance to be positioned horizontally
15
Side panel Covers the appliance wiring compartment
Components and function (gas appliances)

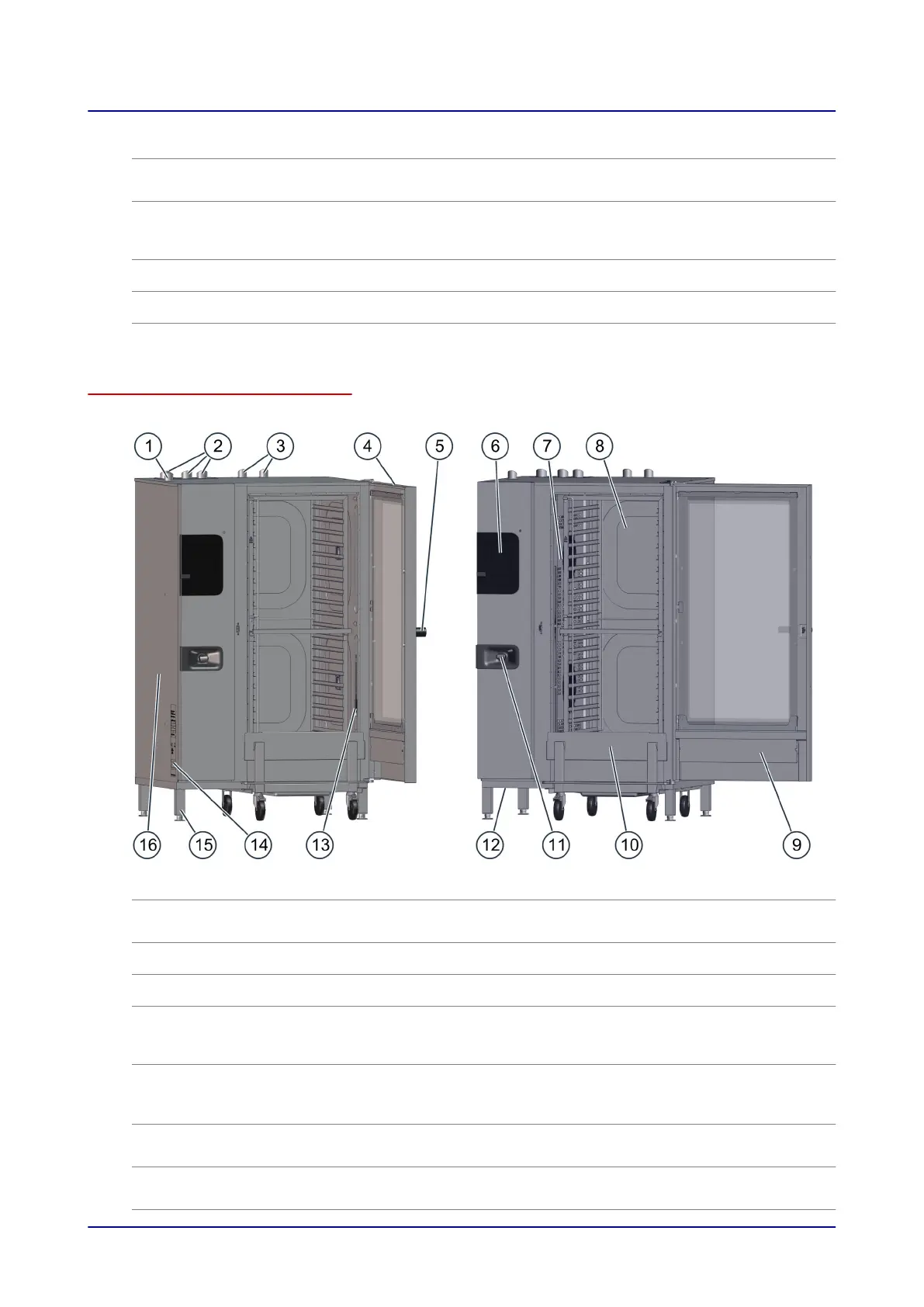

The following illustration shows a size 20.20 combi oven as an example for all gas appliances:
Item Name Function
1
Ventilation port
■
External air intake for removing the moisture from the cooking chamber
■
Smooths out any pressure fluctuations in the cooking chamber
2
Exhaust outlet Takes away hot exhaust gases
3
Air vent Allows hot vapour to escape
4
Appliance door
■
Closes the cooking chamber
■
Can slide back beside the appliance when opened in order to save space
("disappearing door") (optional)
5
Door handle
■
Opens and closes the appliance door
■
On-latch position for opening the appliance safely
■
Antibacterial material containing silver ions ("HygieniCare")
6
Operating panel
■
Used for operating the appliance
■
Antibacterial ("HygieniCare")
7
Suction panel
■
Distributes the heat evenly inside the cooking chamber
■
Separates the fan compartment from the cooking chamber
2 Design and function
Installation manual 12
