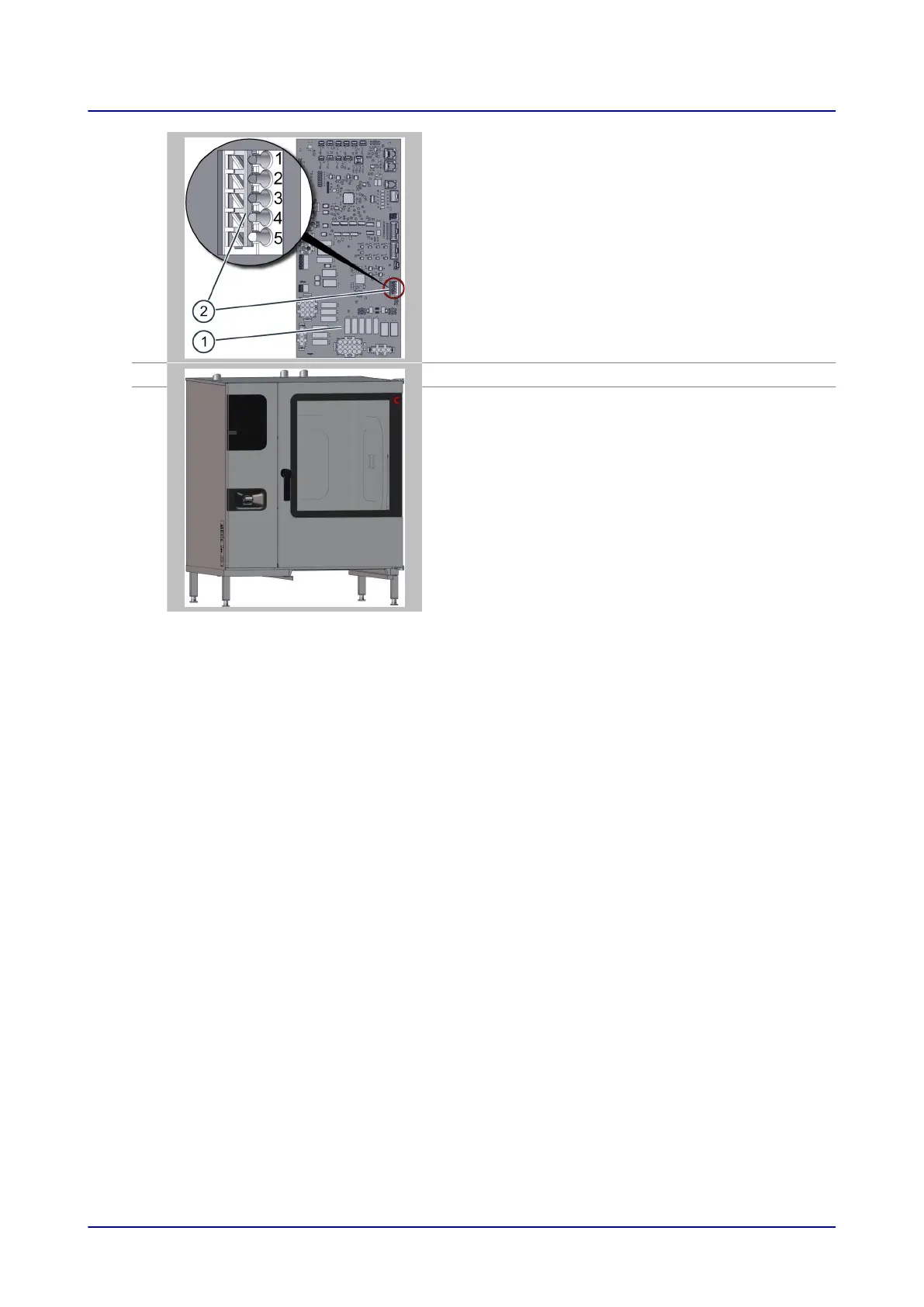

Connect the signal-tower connecting cable to the combi oven in ac-
cordance with the PIN assignment shown below
.
PIN Assignment Wire colour
1
GND BU (Blue)
2
Signal: buzzer GY (Grey)
3
Signal: red light BK (Black)
4
Signal: yellow light WH (White)
5
Signal: green light BN (Brown)
5.
Refit the side panel on the combi oven.
6.
Put the combi oven and signal tower into operation.
