User Guide
3. Support
3.3 PSU Replacement

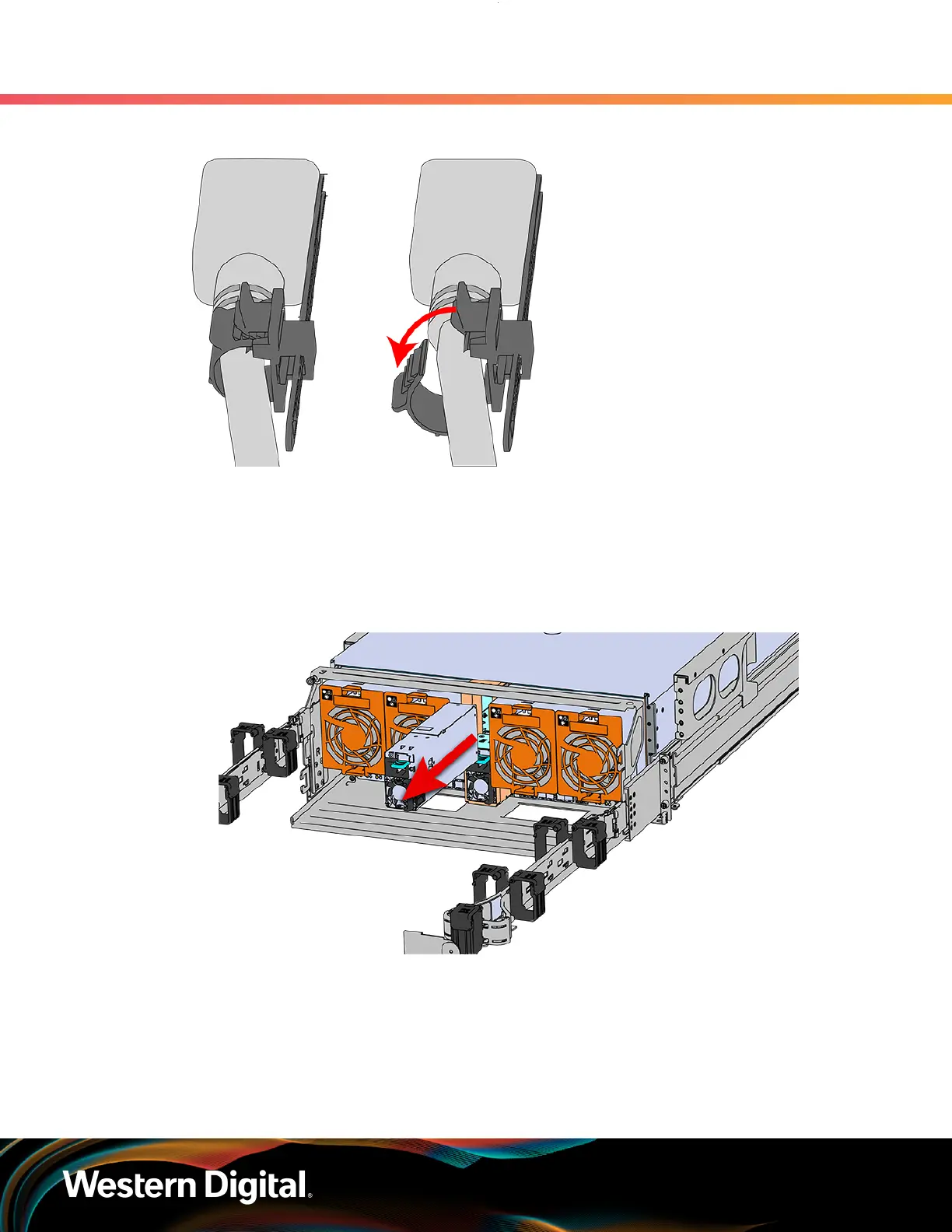

Figure 45: Cable Retention Mechanism
Step 4 : Remove the power cable from the faulty PSU.
Step 5 : Uninstall the PSU.
a. Grasp the release lever and the metal handle in a downward pinching motion to release the
latching mechanism.
Figure 46: Uninstalling PSU
b. Pull the PSU straight out with even pressure.
Step 6 :
Remove the new PSU from its packaging.
Step 7 : Install the PSU.
a. Align the PSU in the orientation shown in the following image.
b.
Slide the PSU into the slot until it seats fully into the chassis.
64
