20
Western Digital Hard Disk Drive OEM Specification

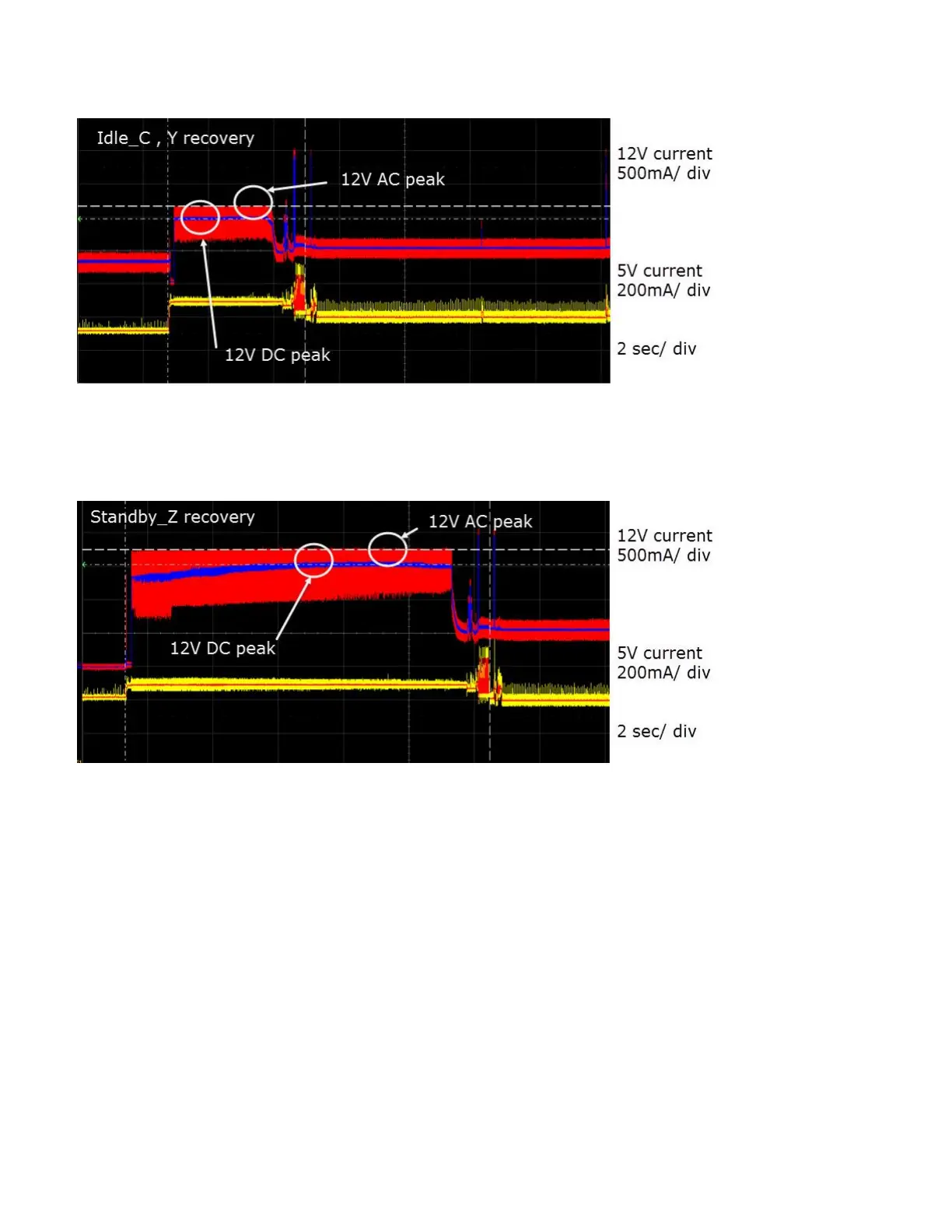

Idle_C, Standby_Y recovery peak AC and DC on 12V
Figure 8 Idle_C Standby_Y recovery current waveform
Standby_Z recovery peak AC and DC on 12V
Figure 9 Standby_Z recovery current waveform
