Whirlpool CS1250 - Appliance and Accessories Chart; Earthing Instructions

48
General Preparation and Advice
before Use
49
General Preparation and Advice
before Use
1. Control Panel: To operate the combi steamer (For details see the control panel instructions P.51-55).
2. Air Outlet: To exhaust excessive steam from the cavity.
3. Oven Light: To light up the oven to observe the food being cooked.
4. Steam Exhaust: To discharge excess steam from the cavity.
5. Upper Heater: To generate heat to cook food.
6. Water Tank: To be filled with water to generate steam.
7. Steam Inlet: To release steam into the cavity.
8. Oven Door: 1. Make sure the door is closed before starting to cook.
2. The combi steamer will pause if you open the oven door during cooking. The selected mode
will continue automatically once the door is closed.
9. Drip Tray: To collect excess water when the door is open and foul water from Descaling Mode.
10. Door Sensor: To sense the door closed.
Control Panel
Air Inlet
Upper Heater
Water Tank
Steam Outlet
Oven Door
Drip Tray
Air Outlet
Oven Light
■
Earthing Instructions
This appliance must be earthed. In case of electric leakage, the ground can provide a current loop to avoid electric shock. The
power supply plug that comes with this appliance must be inserted into a single-phase-bipolar socket with grounding.
■

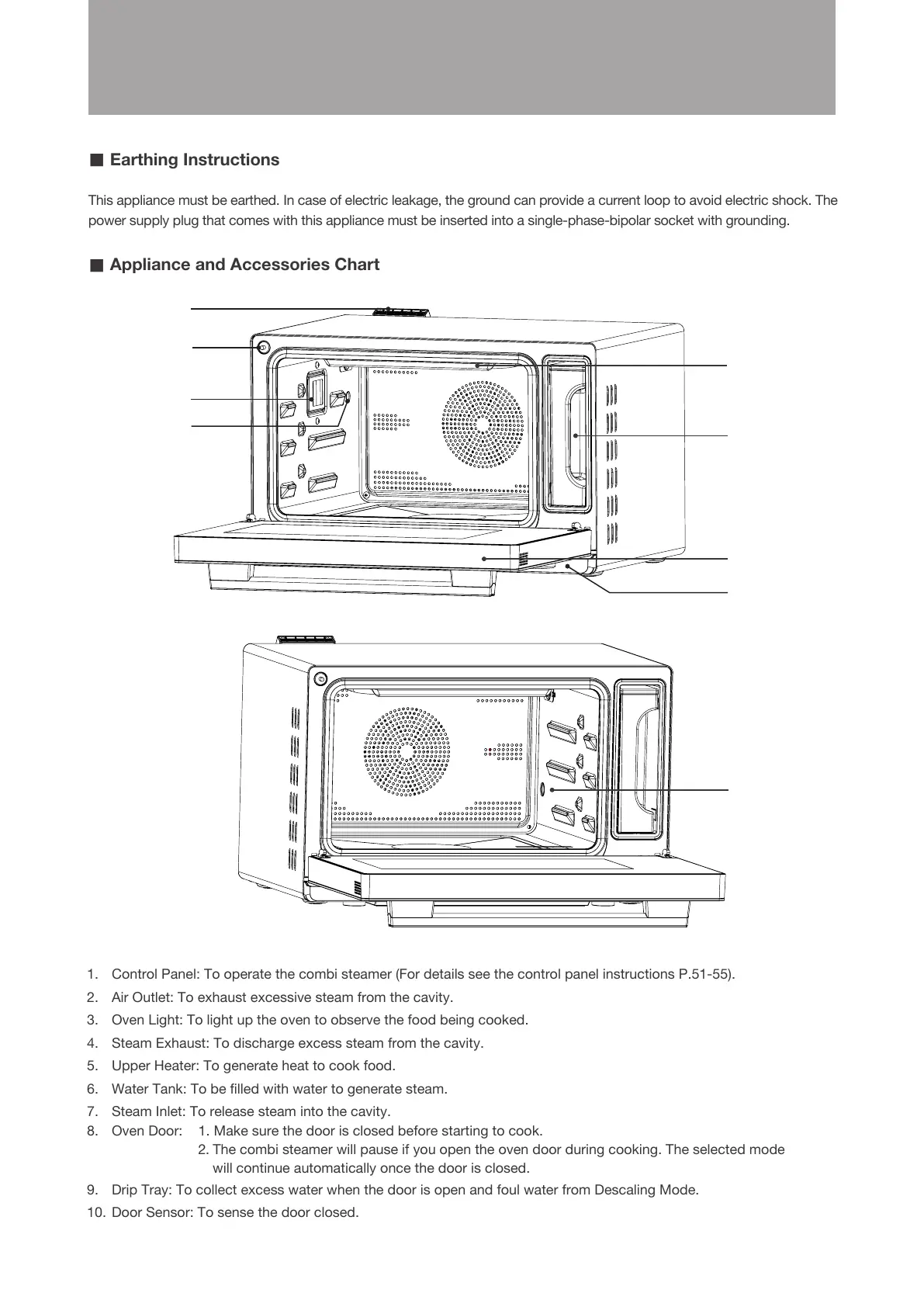

Appliance and Accessories Chart
Drip Tray
Oven Door
Water Tank
Upper Heater
Steam Inlet
Air Outlet
Steam Exhaust
Oven Light
Door Sensor
49
General Preparation and Advice
before Use
1. Control Panel: To operate the combi steamer (For details see the control panel instructions P.51-55).
2. Air Outlet: To exhaust excessive steam from the cavity.
3. Oven Light: To light up the oven to observe the food being cooked.
4. Steam Exhaust: To discharge excess steam from the cavity.
5. Upper Heater: To generate heat to cook food.
6. Water Tank: To be filled with water to generate steam.
7. Steam Inlet: To release steam into the cavity.
8. Oven Door: 1. Make sure the door is closed before starting to cook.
2. The combi steamer will pause if you open the oven door during cooking. The selected mode
will continue automatically once the door is closed.
9. Drip Tray: To collect excess water when the door is open and foul water from Descaling Mode.
10. Door Sensor: To sense the door closed.
Control Panel
Air Inlet
Upper Heater
Water Tank
Steam Outlet
Oven Door
Drip Tray
Air Outlet
Oven Light
■
Earthing Instructions
This appliance must be earthed. In case of electric leakage, the ground can provide a current loop to avoid electric shock. The
power supply plug that comes with this appliance must be inserted into a single-phase-bipolar socket with grounding.
■
Appliance and Accessories Chart
