2. Operation
2.1.3 FireWIN Exklusiv
Version as FireWIN Premium, but in addition with fully automatic heating surface cleaning and ash compactor
Fully automatic heating surface cleaning:
A motor moves the heating surface cleaning system vertically and the heating surfaces remain clean.
Fully automatic ash compactor:
The fully automatic ash compactor uses a motor and pressure plate to compress the ash in the ash container.
This makes the emptying intervals up to 3 times longer.

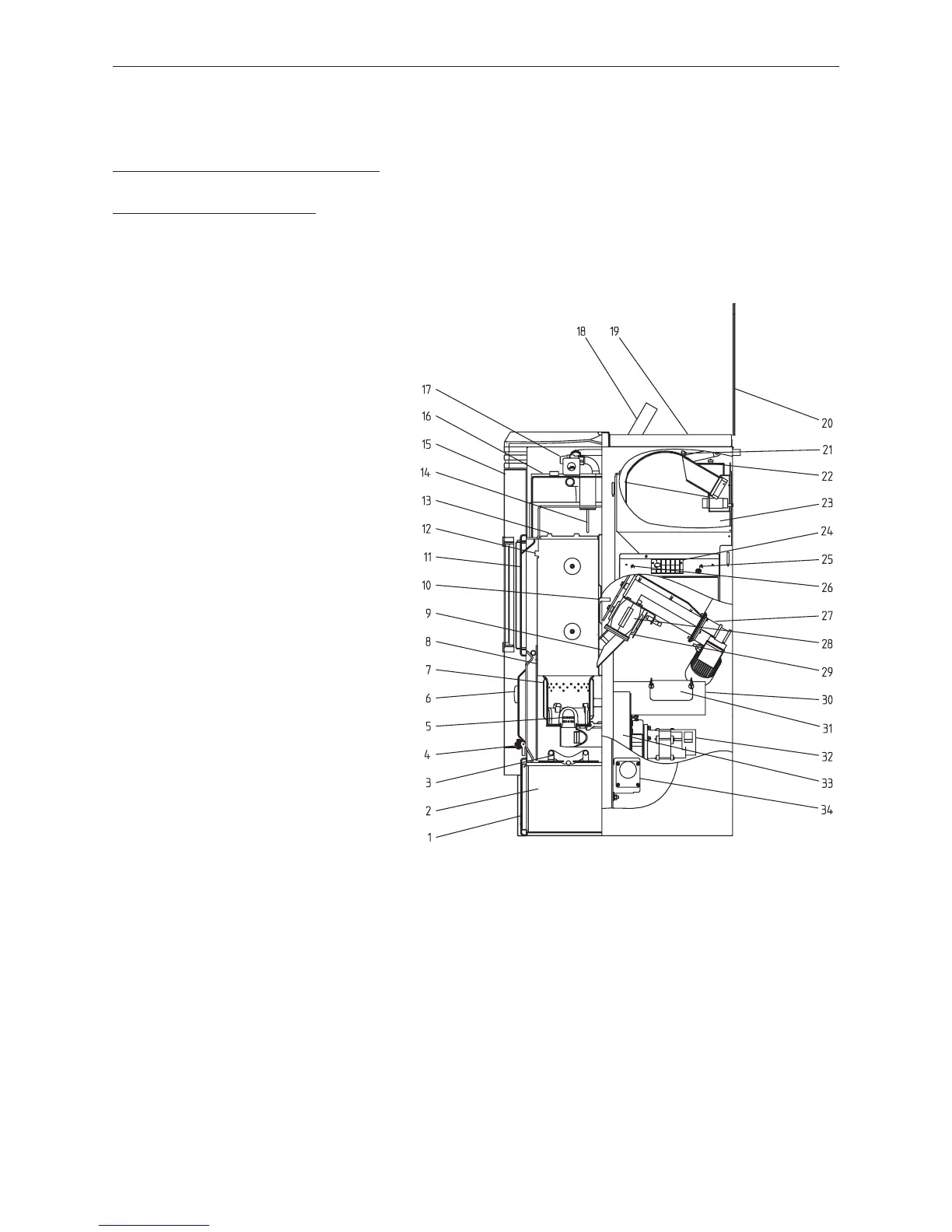

Fig. 6 FireWIN Exklusiv – view from right
1 ........... Ash pan
2 ........... Ash door
3 ........... Ash compactor
4 ........... Filling and evacuation cock
5 ........... Primary air pin
6 ........... Pressure gauge
7 ........... Burner pot
8 ........... Heat shield
9 ........... Down chute
10 .........Pressure measuring nipple
11 .........Combustion chamber door
12 .........Lug for hanging in the heat shield
13 .........Baffle plate
14 .........Thermocontrol sensor
15 .........Cladding door
16 .........Heating surface cover
17 .........Safety valve
18 .........InfoWINplus operating unit
19 .........Reserve supply container cover
20 .........Glass cover
21 .........Inspection cover
22 .........Coarse filter
23 .........Pellet reserve supply container
24 .........1 MESplus module or with 2 or more modules
in the wall-mount casing
25 .........Boiler temperature safety thermostat B7
26 .........Rotary feeder safety thermostat B7a
27 .........Auger and motor
28 .........Rotary feeder
29 .........Rotary feeder cleaning opening
30 .........Exhaust pipe
31 .........Exhaust pipe cleaning opening
32 .........Blower motor
33 .........Blower box
34 .........Motor for ash compression
