3. Care, cleaning and maintenance

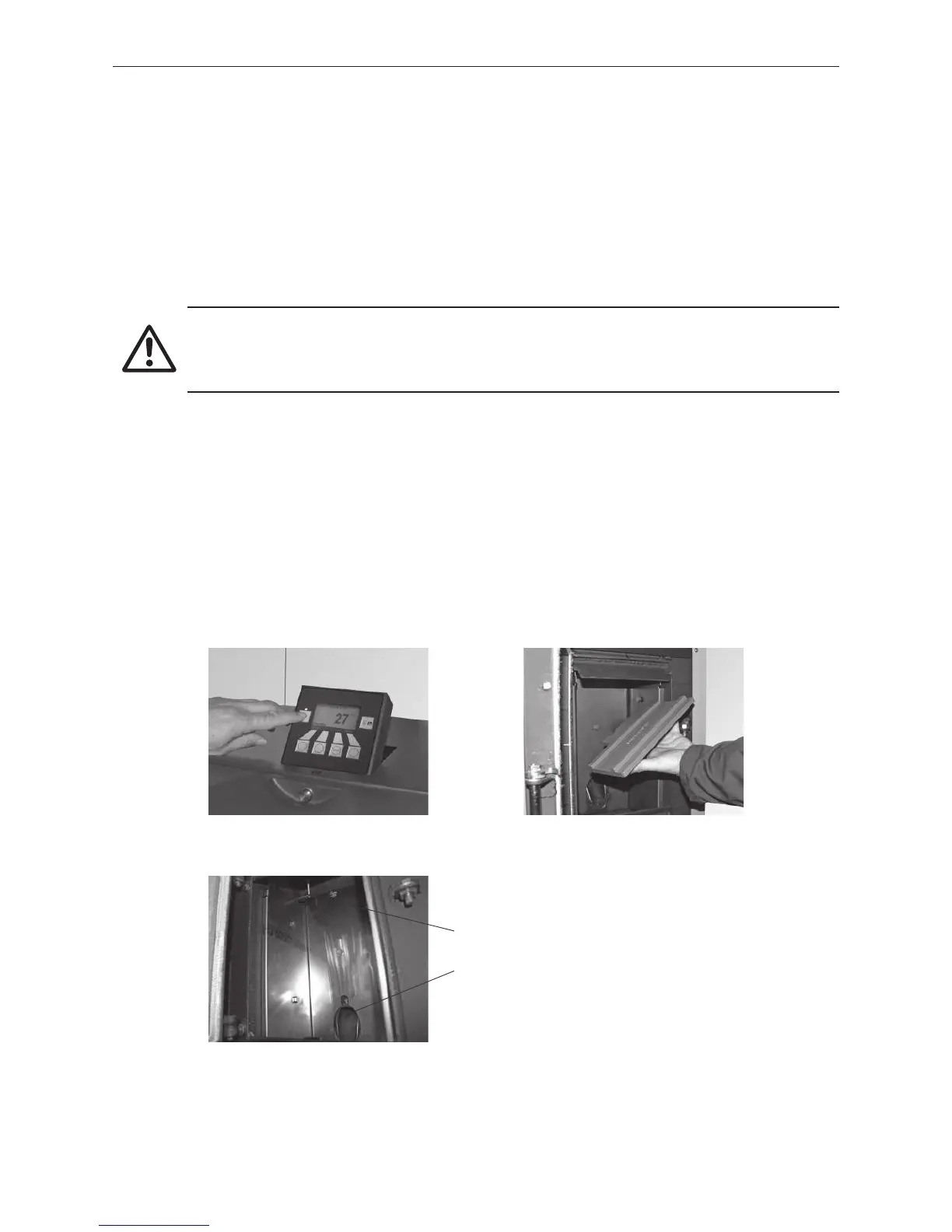

Fig. 131 Switching off FireWIN Fig. 132 Removing and cleaning the baffle plate
Fig. 133 Cleaning the thermocontrol sensor
(with cleaning brush) and down chute
Thermocontrol sensor
Down chute
Assembly:
– Push in the ash pans, close the doors.
– Switch the FireWIN back on with the ON/OFF button.
3.6 Combustion chamber
The FireWIN is equipped with a cleaning interval display. The cleaning request for the combustion chamber and
burner pot is displayed and must be reset after cleaning is finished – see section 2.8.1.1. „Boiler cleaning - Re-
setting the cleaning request“.
Attention!
Do not open the combustion chamber door during operation. Always switch the boiler off first with
the ON/OFF button and wait until burnout mode has finished. It is essential to let the boiler cool
down before cleaning.
3.6.1 Baffle plate, thermocontrol sensor, down chute
– Switch off the FireWIN with the ON/OFF button on the InfoWINplus (Fig. 131) and wait until the display has gone out.
– Open the combustion chamber door, lift the baffle plate at the right and guide it out at an angle, sloping down
to the left – Fig. 132, Removing the baffle plate and fly ash.
– If necessary, remove fly ash from the thermocontrol sensor with a cleaning brush. The thermocontrol sensor
is located at the top left of the combustion chamber behind the baffle plate – Fig. 133.
– Cleaning the down chute – Fig. 133.
Assembly:
By working through these steps in reverse order.
