3. Care, cleaning and maintenance

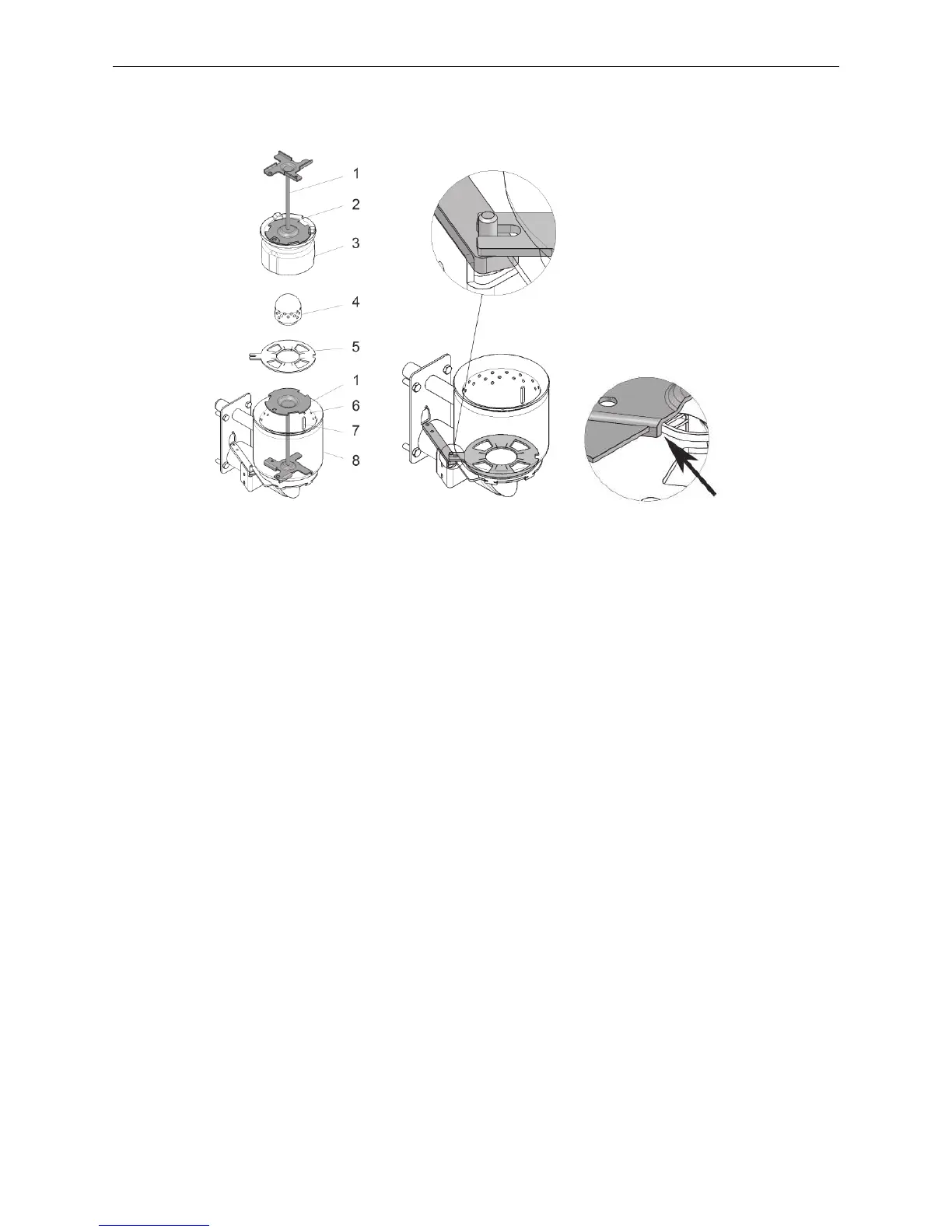

Fig. 134 Fig. 135
1 ........... Cleaning tool or removal device for cone
2 ........... Guide groove for locking the cone in the burner pot
3 ........... Cone
4 ........... Primary air pin
5 ........... Grate plate
6 ........... Secondary air holes
7 ........... Lock for cone
8 ........... Burner pot
Detail
FireWIN 90/120
Fig. 136
