Tempro basic C 90 & Tempro primus C 90
Page 19
BASIC & PRIMUS C90 V 3.0 english / 10.04.2012
Tempro basic C 90 & Tempro primus C 90

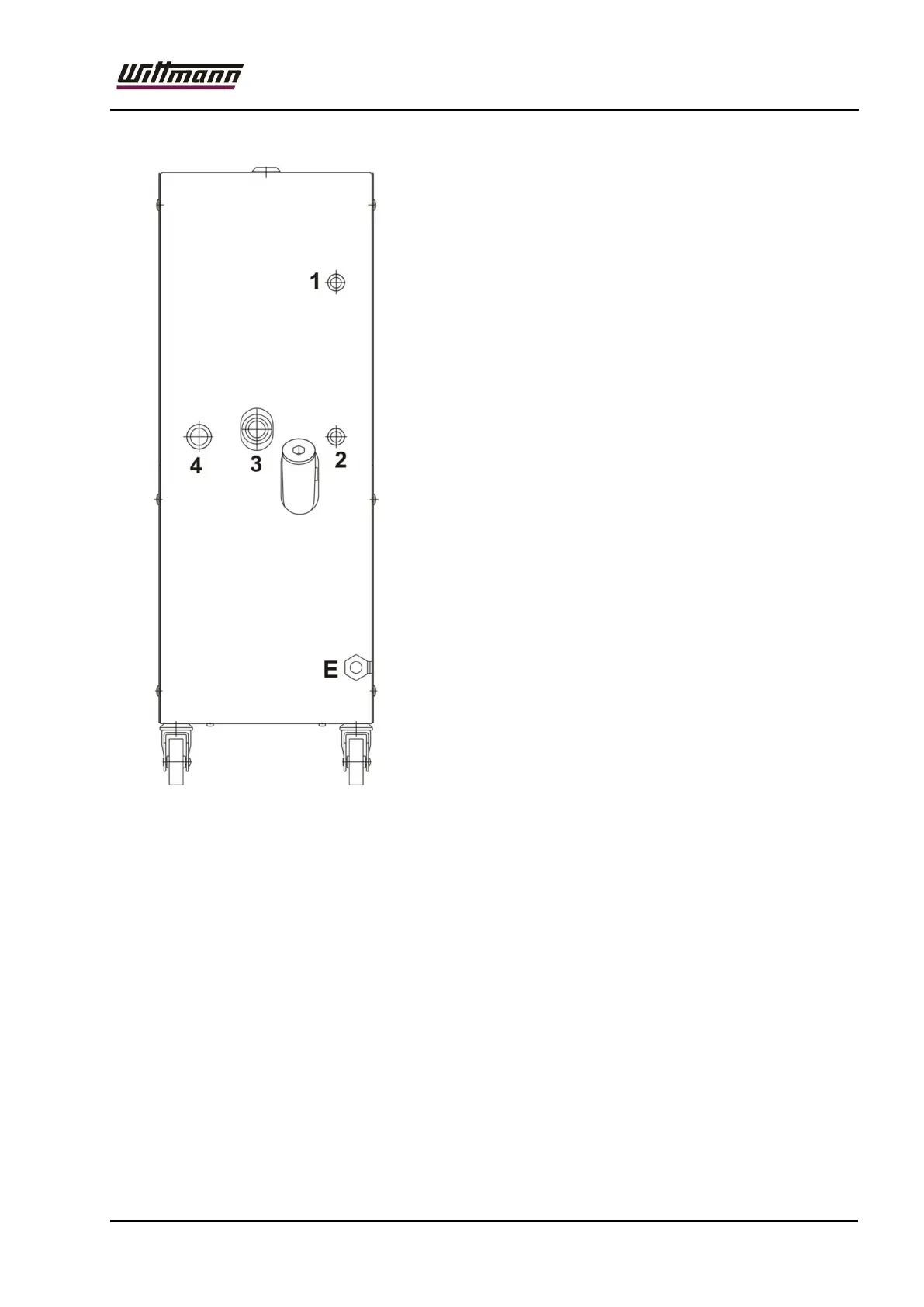

1 Cooling water – Inlet (G ¼“)
2 Cooling water – Outlet (G ¼“)
3 Mold connection – Feed (G ¾“)
4 Mold connection – Return (G ½“)
E MAIN CONNECTION
